7914support2-0209.fm Draft Document for Review March 28, 2011 12:24 pm
390 IBM System Storage DS3500: Introduction and Implementation Guide

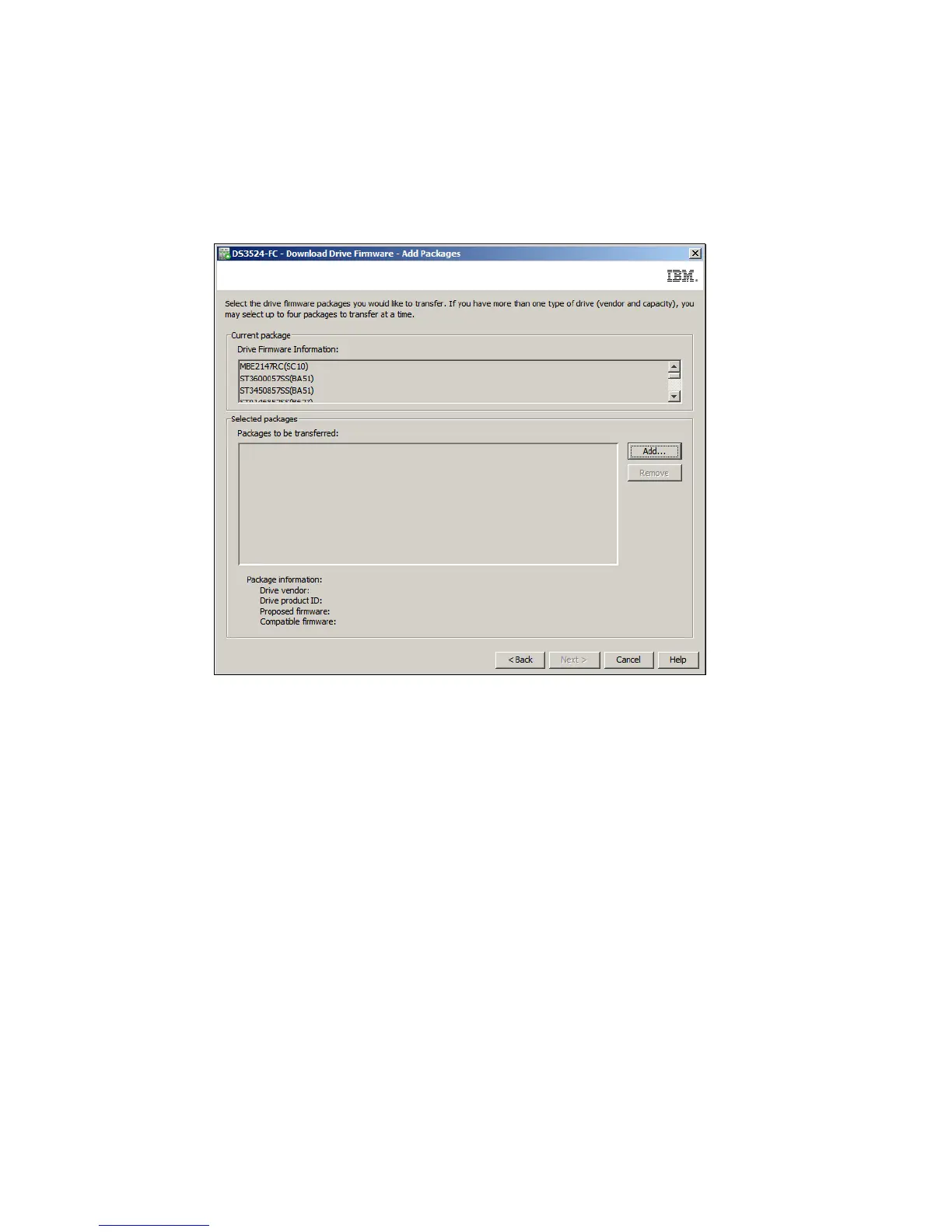

2. The Download Drive Firmware - Add Packages window appears (Figure 14-81). This
window has two main sections:
–The Current package section contains a list of all the drive models and the firmware
levels that are currently installed on each of these drive models.
–The Selected packages section contains the list of firmware package files to be
transferred once you have added them.
Figure 14-81 Select drive firmware package
3. Click Add... to open the Select A Package window (Figure 14-82 on page 391) and
browse to the folder that contains the drive package files.
