7914support2-0209.fm Draft Document for Review March 28, 2011 12:24 pm

392 IBM System Storage DS3500: Introduction and Implementation Guide

4. Repeat these steps for every drive type that you want to update. You can update up to four

drive types at a time. Once you have selected the compatible drive firmware packages,

click Next in the Download Firmware window (Figure 14-85) to continue.

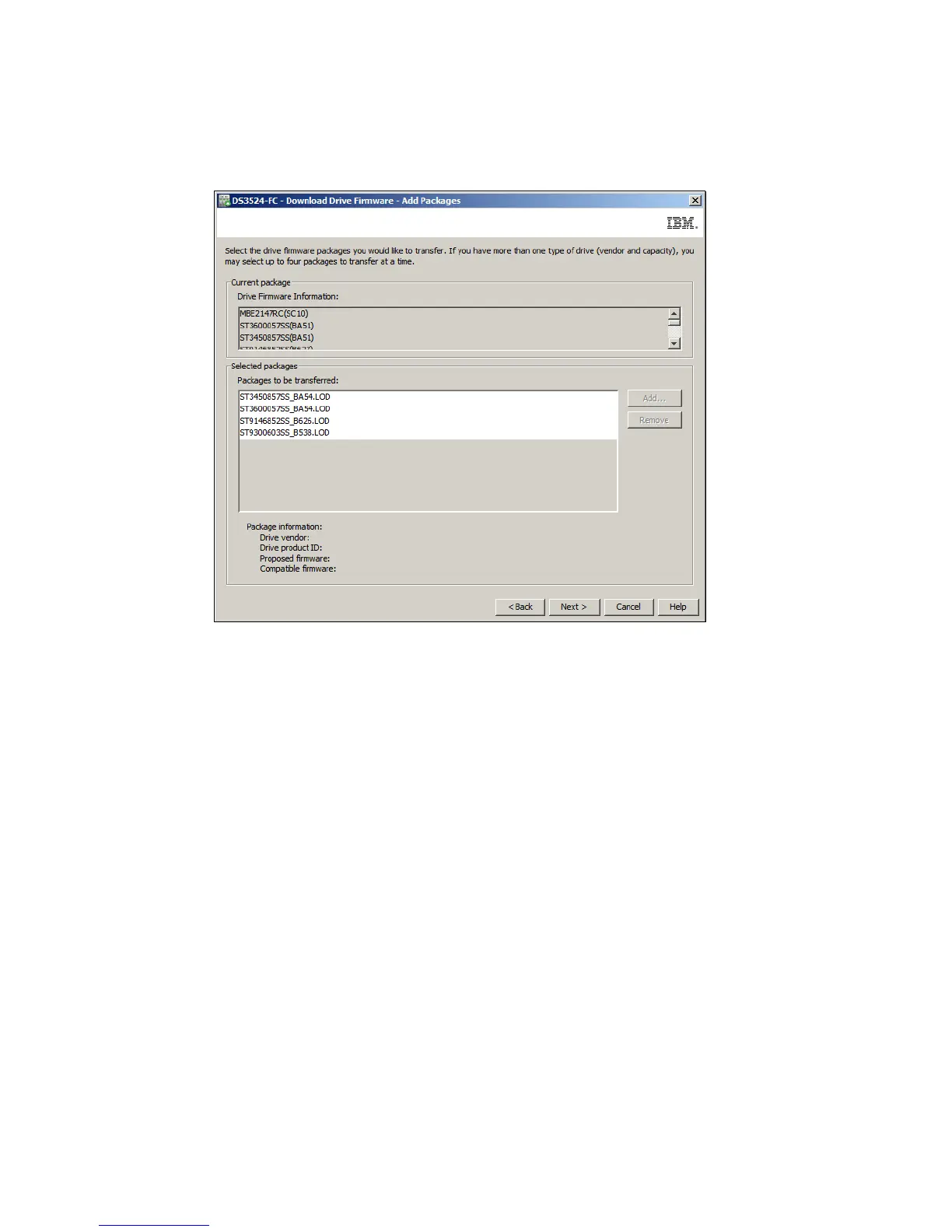

Figure 14-85 Drive packages added
