Chapter 14. Administration - Support 393
Draft Document for Review March 28, 2011 12:24 pm 7914support2-0209.fm

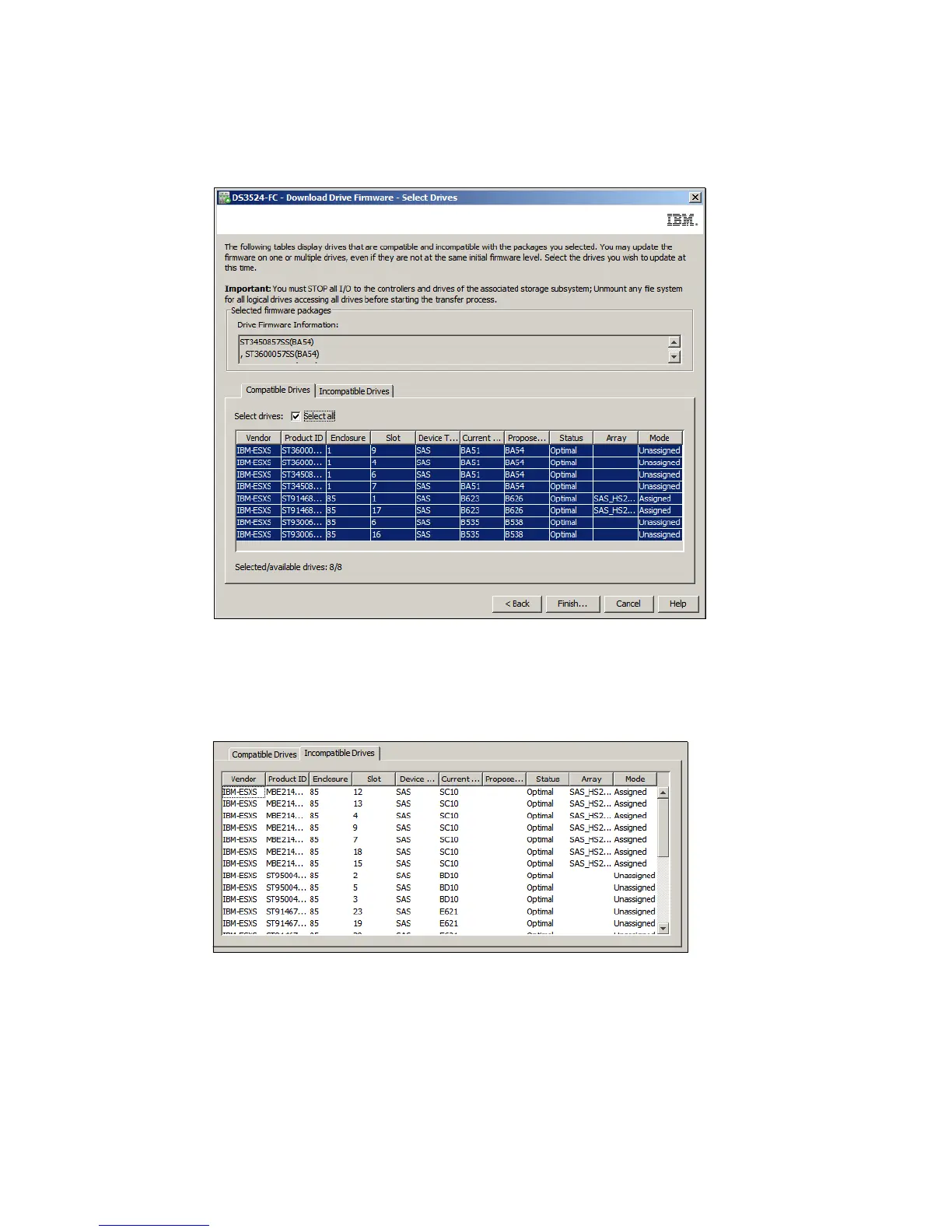

5. Now you have to select the drives in the subsystem you want to update (Figure 14-86).
You only see the compatible drives in this window. Check Select all to update all
compatible drives.
Figure 14-86 Compatible drives which can be updated
6. The drives that are not compatible with the selected updates are shown on the
Incompatible Drives tab (Figure 14-87). These are other drive types, and you will have to
use other firmware packages.
Figure 14-87 Incompatible drives tab
7. Click Finish... to update the drive firmware. A confirmation window appears (Figure 14-88
on page 394). Type yes and click OK to start the update.
