Chapter 16. IBM Remote Support Manager for Storage 513

Draft Document for Review March 28, 2011 12:24 pm 7914RSM.fm

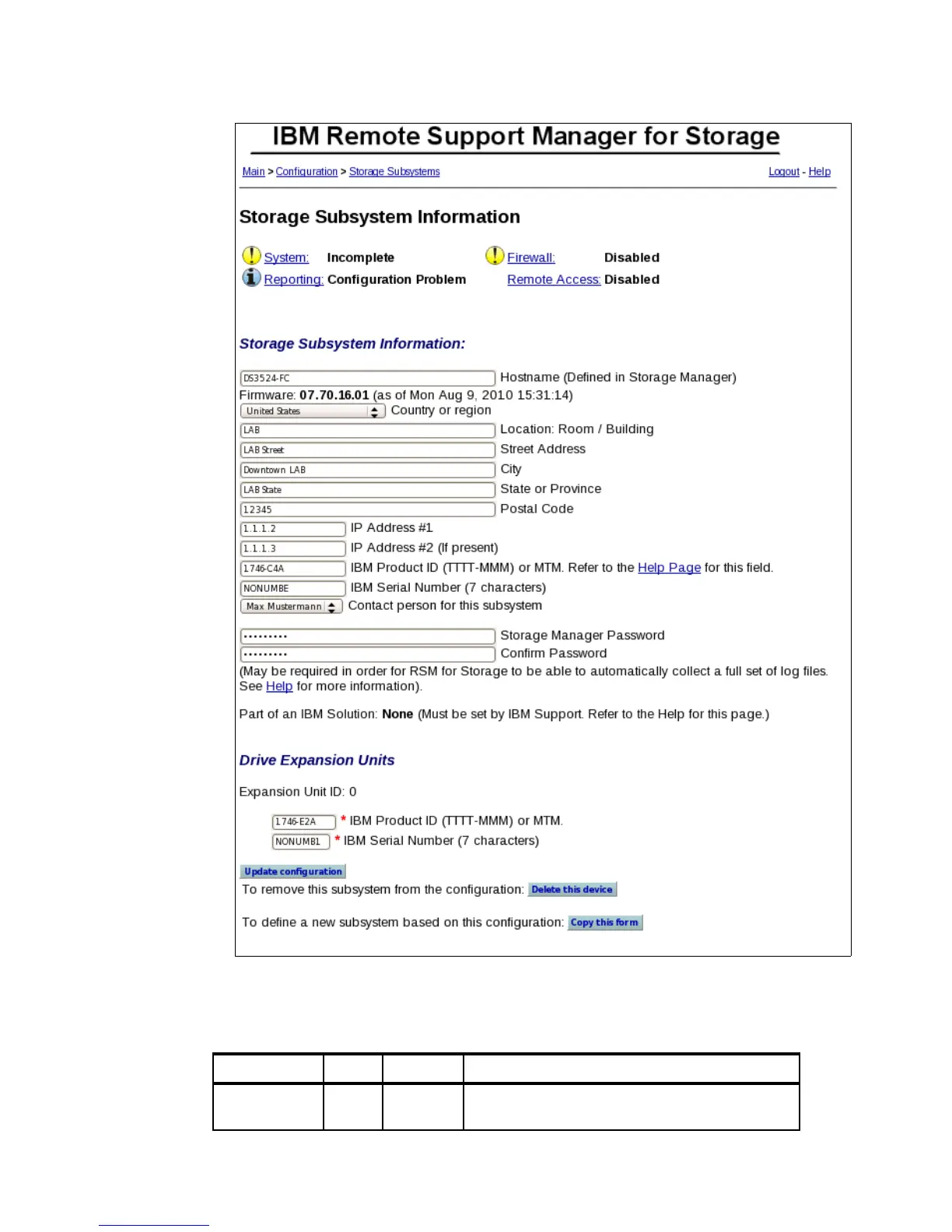

Figure 16-20 RSM Configure Storage Subsystem continued...

17.A possible selection of the IBM Product ID you will find in Table 16-3.

Table 16-3 RSM Product IDs used for RSM

Machine Type Model HVEC PN Description

1746 C2A 1746A2S IBM System Storage DS3512 Express Single

Controller Storage System
