Chapter 20. SuSE Linux configuration guide 609

Draft Document for Review March 28, 2011 12:24 pm Linux Config.fm

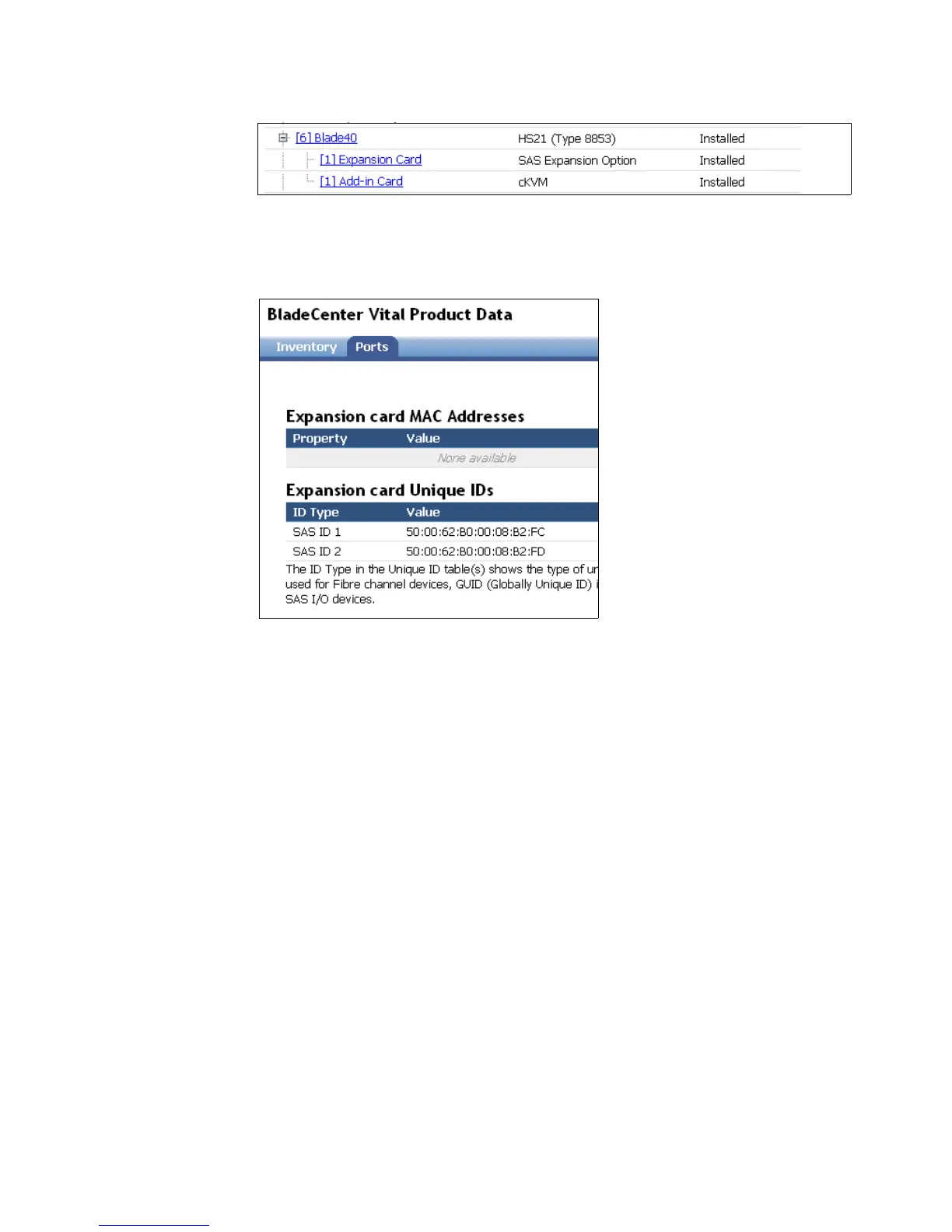

Figure 20-9 Click on Expansion card

c. Then click on Ports tab to see the SAS address for each SAS adapter port as shown in

Figure 20-10

Figure 20-10 Click on the Ports tab to see the SAS ID’s values
