VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

682 IBM System Storage DS3500: Introduction and Implementation Guide

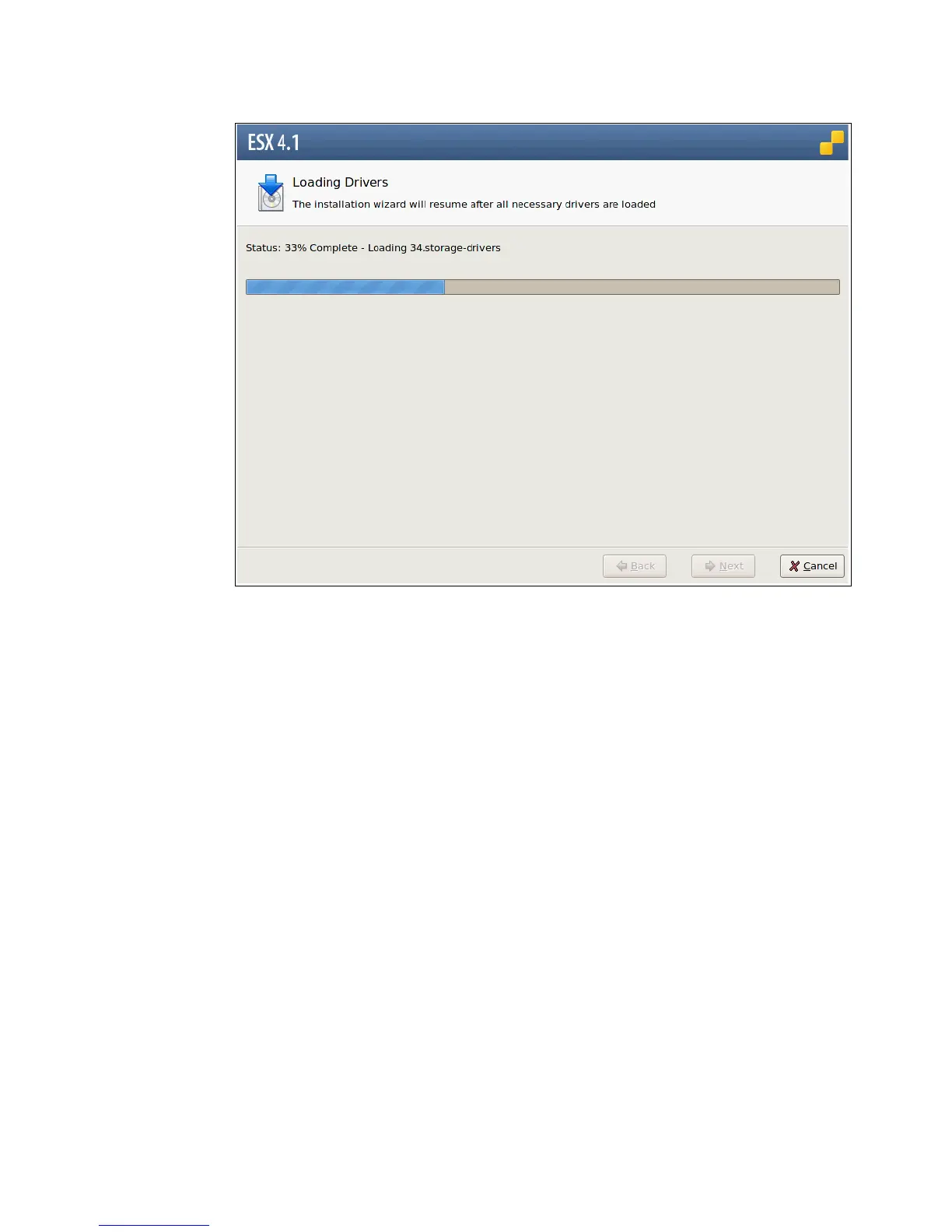

Figure 22-18 ESX Driver load

8. On the Licensing panel, Figure 22-19 on page 683, enter the serial number now, or you

can enter the serial number later using vCenter Server.
