Chapter 22. VMware ESX Server and DS3500 Storage Configuration 701

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

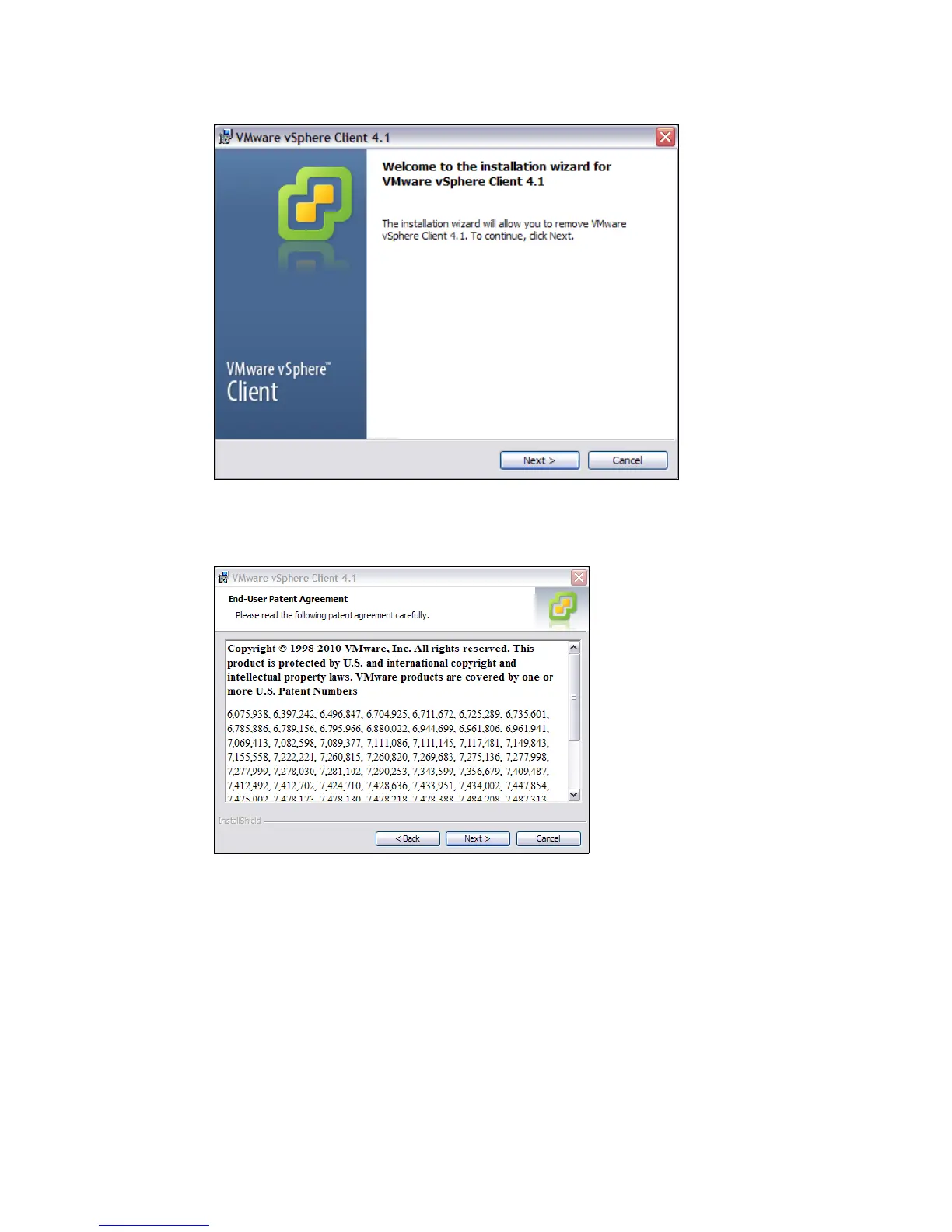

Figure 22-41 ESX Client Installation - Welcome panel

6. On the End/User Patent Agreement panel Figure 22-42 click Next

Figure 22-42 VMware vSphere Client End-User Agreement

7. On the License Agreement panel, Figure 22-43 on page 702, select I agree, and click

Next.
