VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

702 IBM System Storage DS3500: Introduction and Implementation Guide

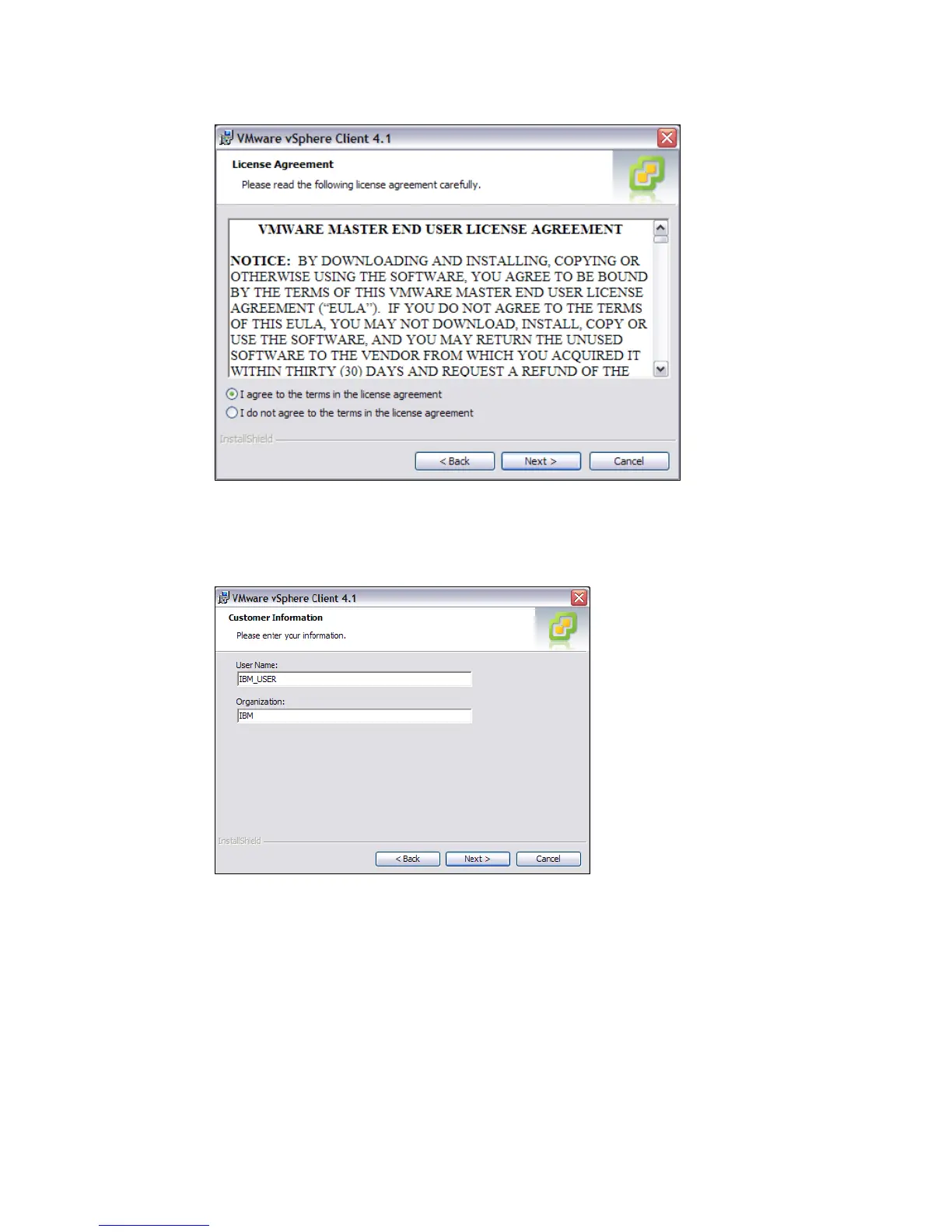

Figure 22-43 ESX Client Installation - License Agreement

8. On the Customer Information panel, Figure 22-44, enter organizational information, and

click Next.

Figure 22-44 ESX Client Installation - Organizational Information

9. On the Ready to Install panel, Figure 22-45 on page 703, click Install. The installation

now starts.
