Attention: Failing to disconnect the optical drive cable from the system board
properly may damage the connector on the system board. Any damage to the
connector may require replacing the system board.

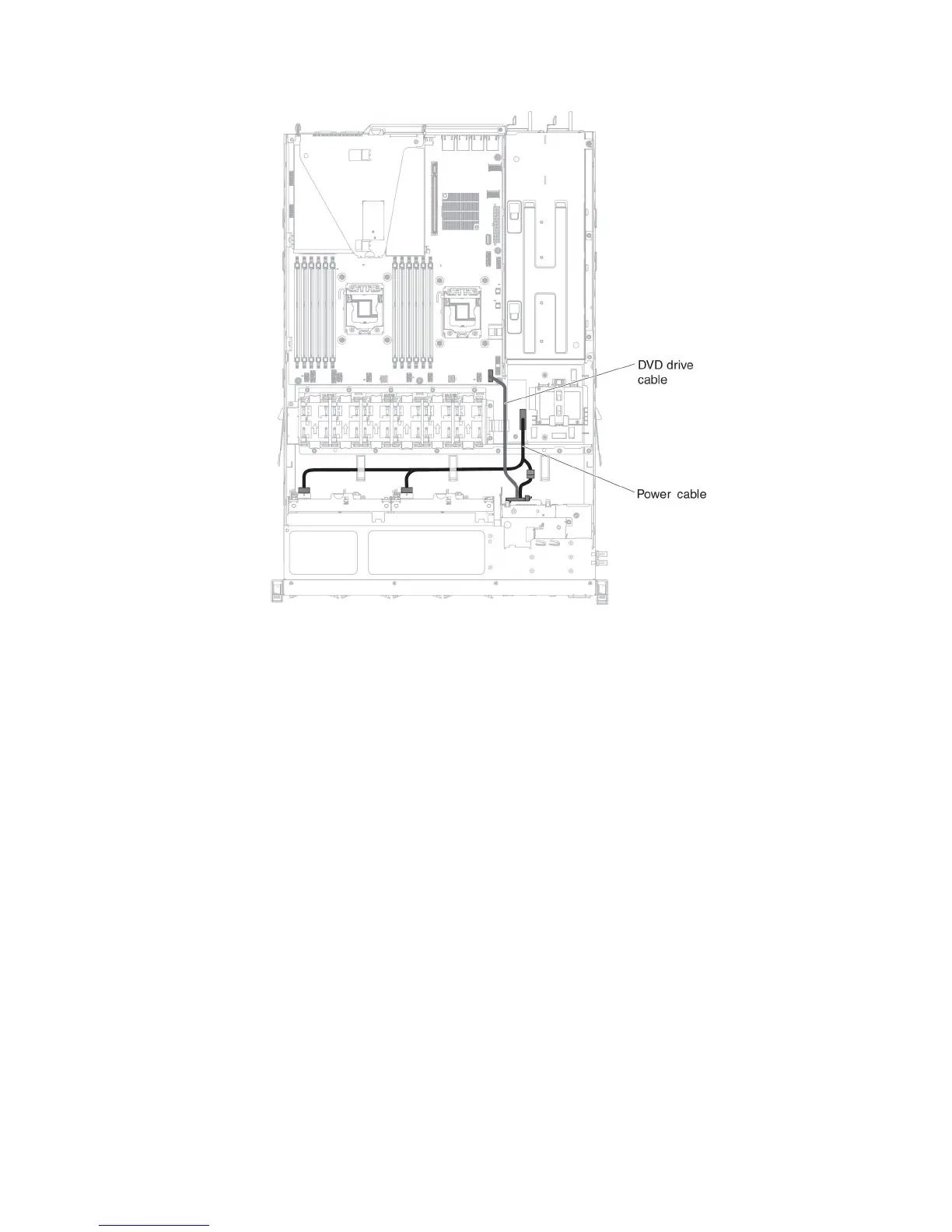

The following illustrations show the cabling information for the power interposer
card assembly for fixed and redundant power supply models respectively:
Chapter 6. Removing and replacing components 277
