Returning a device or component
If you are instructed to return a device or component, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Internal cable routing
This section provides information about routing the cables when you install some
components in the server.
For more information about the requirements for cables and connecting devices,
see the documentation that comes with these devices.
Attention: Failing to install or remove the cable with care may damage the
connectors on the system board. Any damage to the connectors may require
replacing the system board.
General

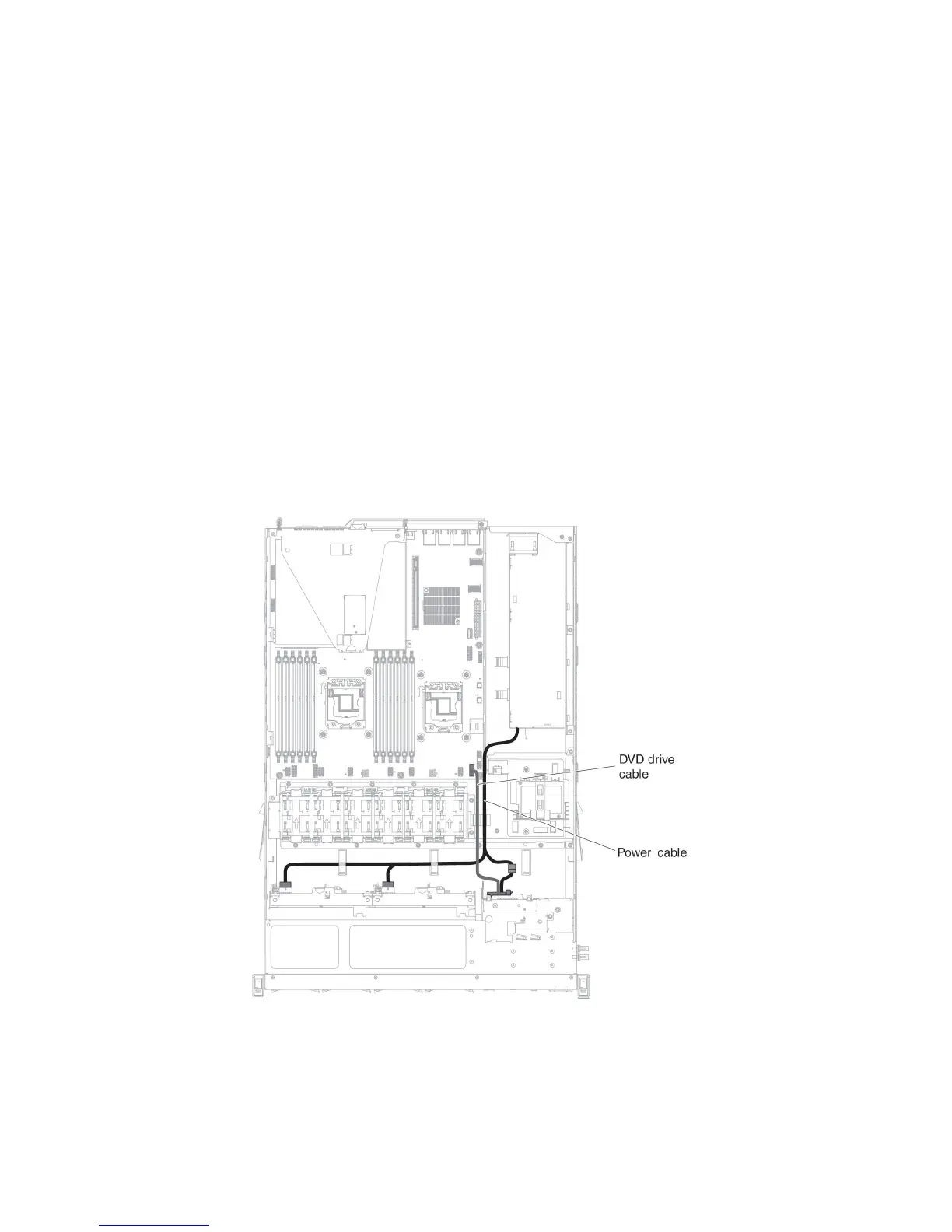

The following illustrations show the cabling information for the optional optical
drive with different power supply models:
276 System x3530 M4 Type 7160: Installation and Service Guide
