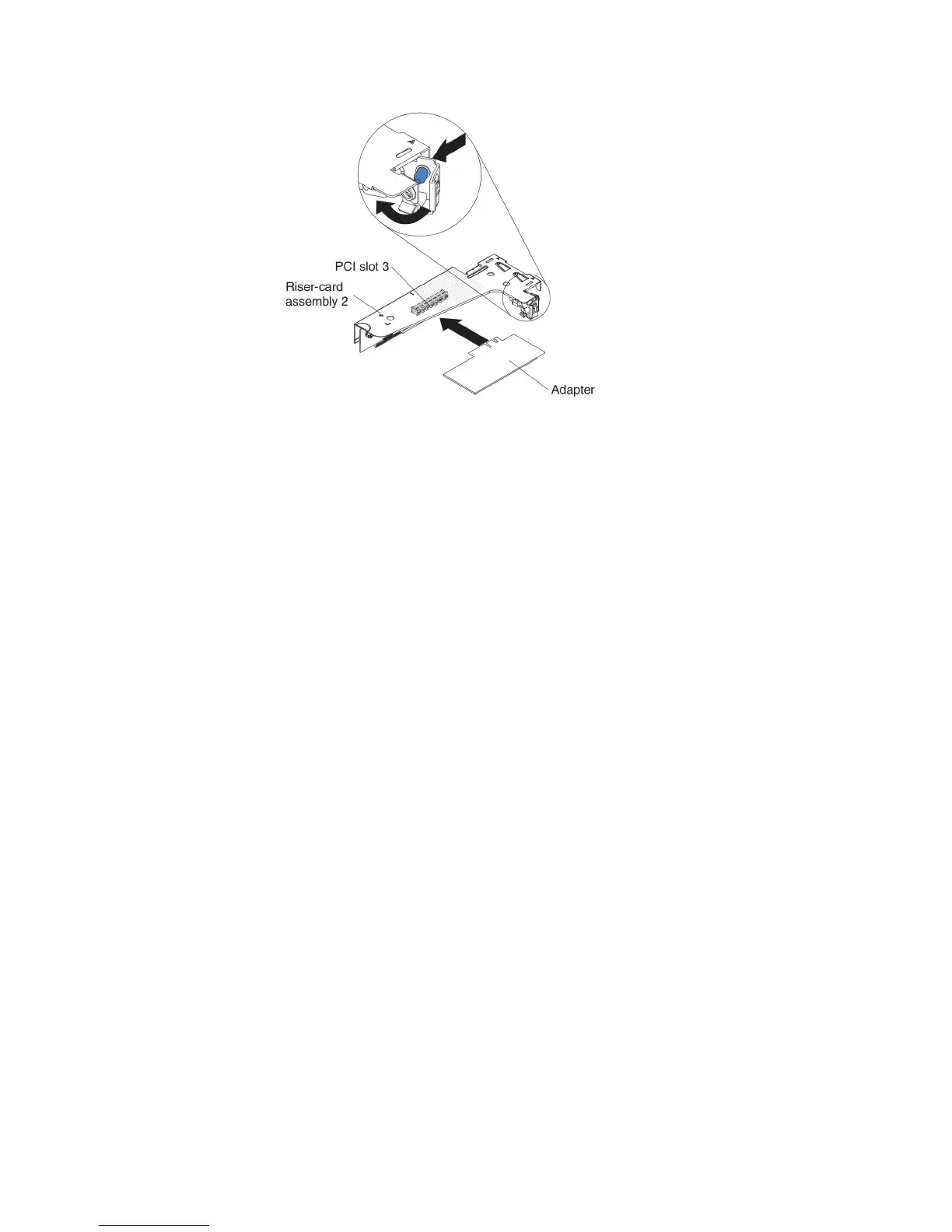

5. Rotate the retention latch to the closed position, making sure the retention
latch engages the ServeRAID adapter. Then, push in the release pin to lock the
retention latch in place.
6. Reconnect cables to the adapter. Be sure to route the signal cables as shown in
the following illustration. Secure the cables with any cable clips on the system
board so that they do not get in the way or get damaged.
7. Reinstall the PCI riser-card assembly (see “Replacing a PCI riser-card
assembly” on page 66).
8. Replace the cover (see “Replacing the server top cover” on page 67).
9. Reconnect the power cord and any cables that you removed.
10. Turn on the peripheral devices and the server.
Removing a remotely installed RAID adapter battery
To remove the RAID adapter battery from the RAID battery tray, complete the
following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server cover (see “Removing the server top cover” on page 362).
4. Remove PCI riser-card assembly 2 (see “Removing a PCI riser-card assembly”
on page 328).
5. From the top of safety cover, press the release tab to open the retention clip
that holds the battery in place.
316 System x3530 M4 Type 7160: Installation and Service Guide
