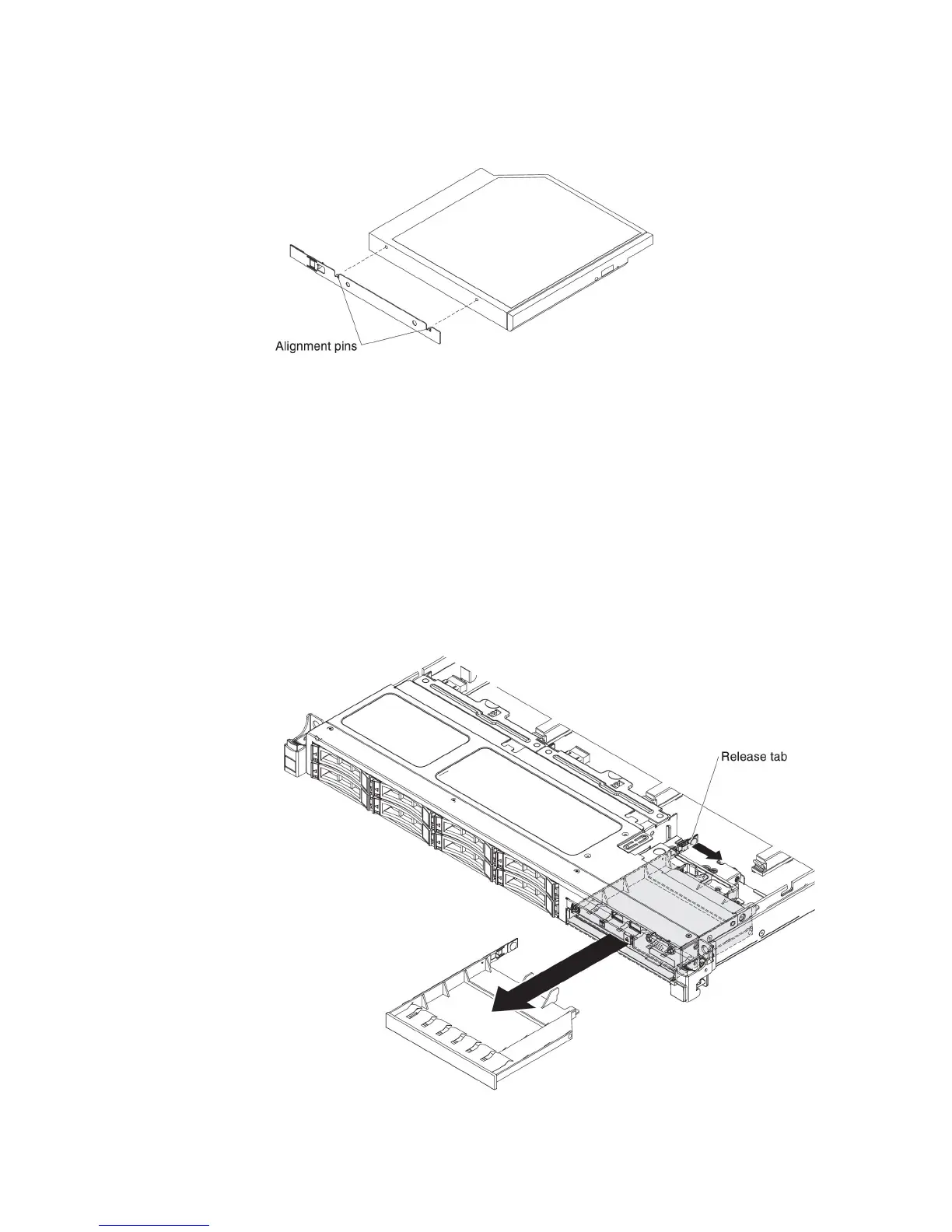

5. Remove the CD/DVD drive out of the bay and slide the drive-retention clip
from the side of the drive. Save the clip to use when you install the
replacement drive.
6. If you are instructed to return the CD/DVD drive, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing an optional CD/DVD drive
To install an optional CD/DVD drive, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Remove the top cover (see “Removing the server top cover” on page 33).
4. Locate the blue release tab on the rear of the drive bay; then, while you press
the tab, push the CD/DVD filler toward the front of the server.
306 System x3530 M4 Type 7160: Installation and Service Guide
