Removing a 3.5-inch simple-swap SATA drive
To remove a 3.5-inch simple-swap SATA drive, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the filler panel from the front of the server.

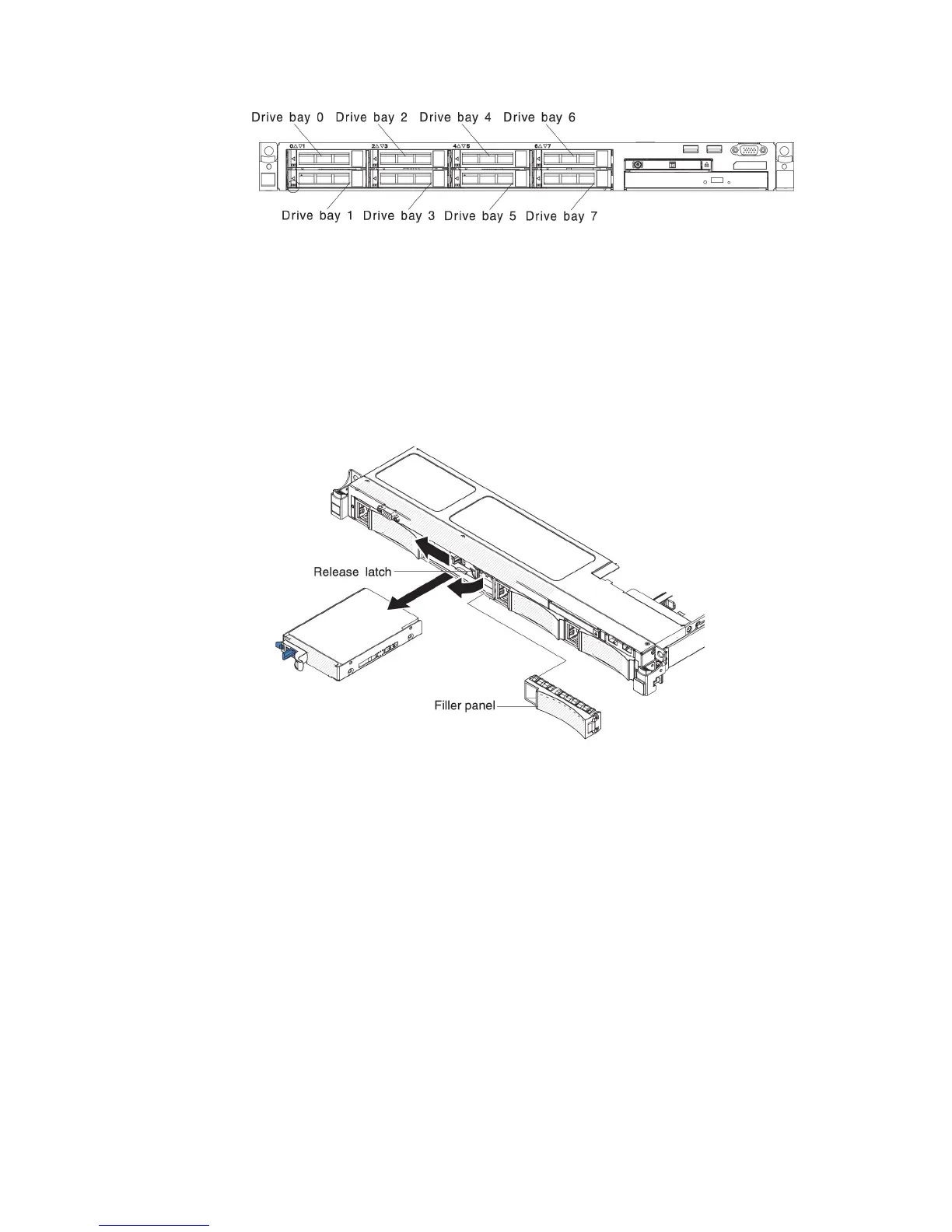

4. Press the release latch and pull the drive out of the bay.
5. If you are instructed to return the drive, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Replacing a 3.5-inch simple-swap SATA drive
Note: You must turn off the server before installing simple-swap drives in the
server.
To install a 3.5-inch simple-swap SATA drive, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Touch the static-protective package that contains the new drive to any
unpainted metal surface on the server; then, remove the drive from the package
and place it on a static-protective surface.
3. Gently push the drive assembly into the drive bay until the drive clicks into
place.
304 System x3530 M4 Type 7160: Installation and Service Guide
