v Set the system date and time.
v Set the power-on password.
v Reconfigure the server.
See “Using the Setup utility” on page 75 for details.
Removing the front USB connector board
To remove the front USB connector board, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server cover (see “Removing the server top cover” on page 362).
4. Disconnect the USB cable from the connector on the rear of the USB assembly.

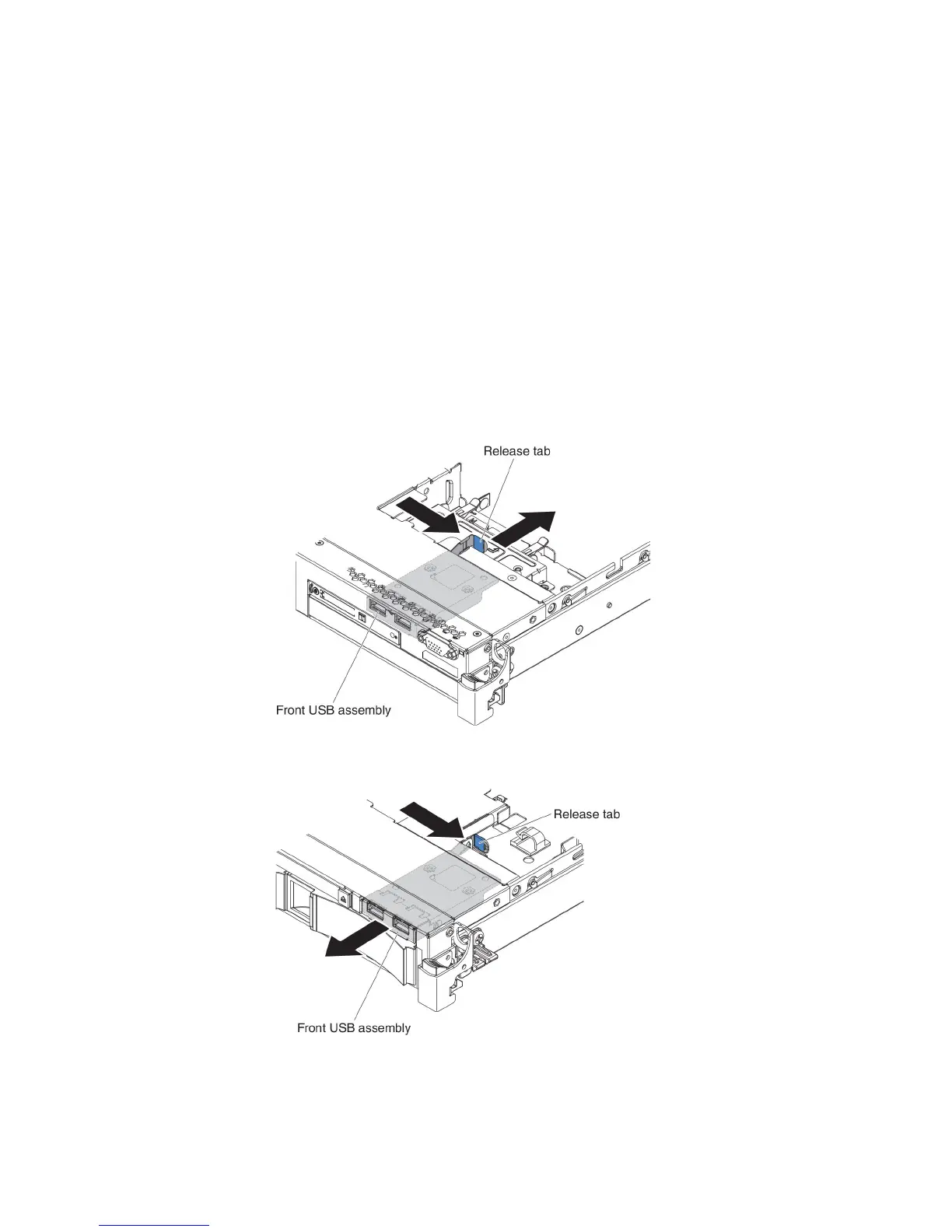

5. (For 2.5-inch hard disk drive models) Press the release tab and push the USB
assembly toward the rear of the server.
6. (For 3.5-inch hard disk drive models) Press the release tab and push the USB
assembly toward the front of the server.
7. Remove the two screws from the USB assembly and rotate the front USB
connector board out of the USB assembly.
336 System x3530 M4 Type 7160: Installation and Service Guide
