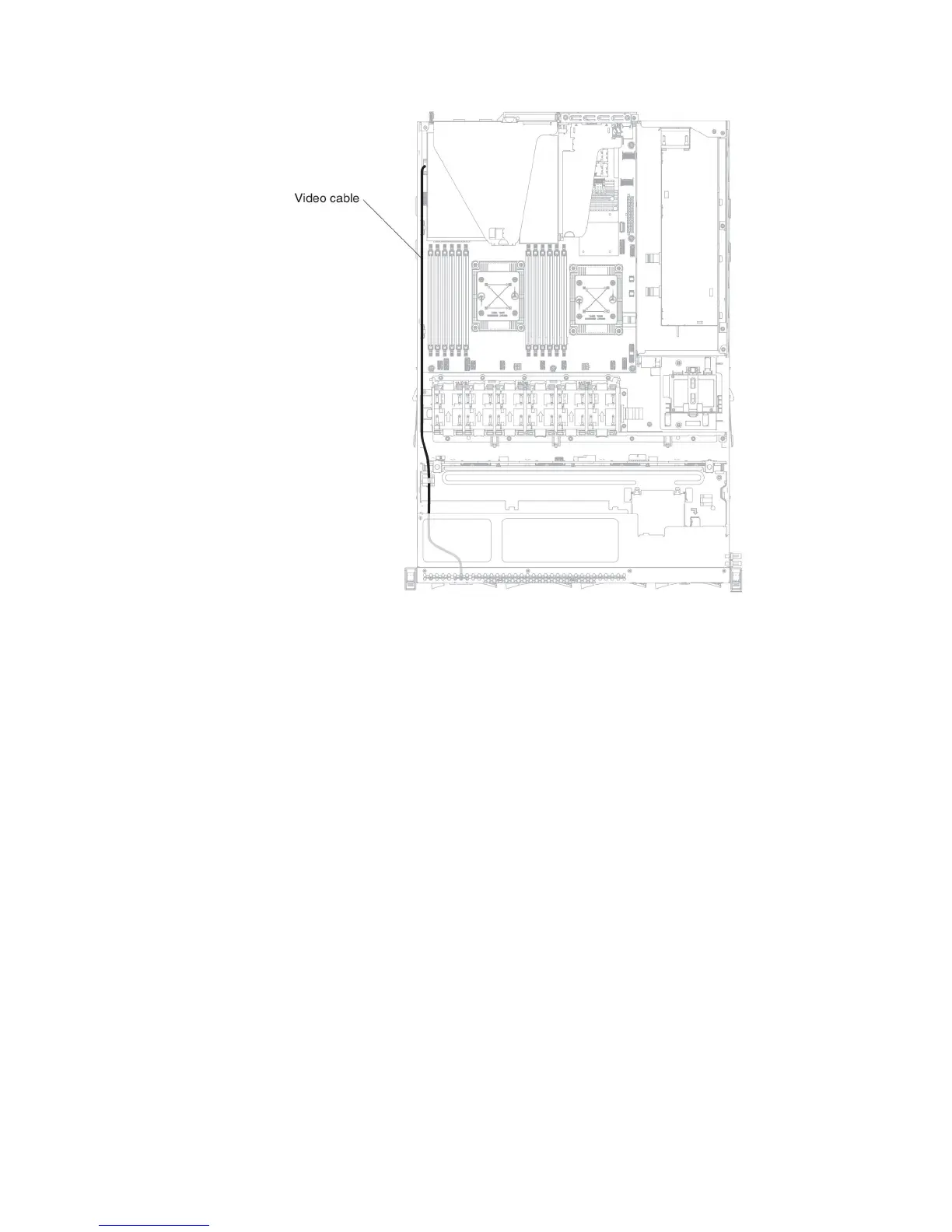

3. Connect the video cable to the connector on the system board. Route the cable
as shown in the following illustration. Secure the cable with any cable clips on
the chassis.
4. Reinstall the cover (see “Replacing the server top cover” on page 67).
5. Reconnect the power cords and any cables that you removed.
6. Turn on the peripheral devices and the server.
Removing the power interposer card assembly
To remove the power interposer card assembly, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server cover (see “Removing the server top cover” on page 362).
4. Remove the air baffle (see “Removing the air baffle” on page 365).
5. If a ServeRAID adapter is installed in PCI riser-card assembly 2, remove PCI
riser-card assembly 2 (see “Removing a PCI riser-card assembly” on page 328).
6. Remove the redundant power supply slightly out of the server to disconnect it
from the power interposer card.
7. Disconnect all power cables from the connectors on the system board.
Disengage the power cables from any cable clips.
8. If a RAID adapter battery is installed on the safety cover, disconnect the
power cable from the ServeRAID adapter.
9. Loosen the screws and remove the safety cover from the top of the power
interposer card.
Chapter 6. Removing and replacing components 341
