Installing a USB embedded hypervisor flash device
To install a hypervisor flash device, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Remove the top cover (see “Removing the server top cover” on page 33).
4. Remove PCIe riser-card assembly 1 (see “Removing a PCI riser-card assembly”
on page 328).

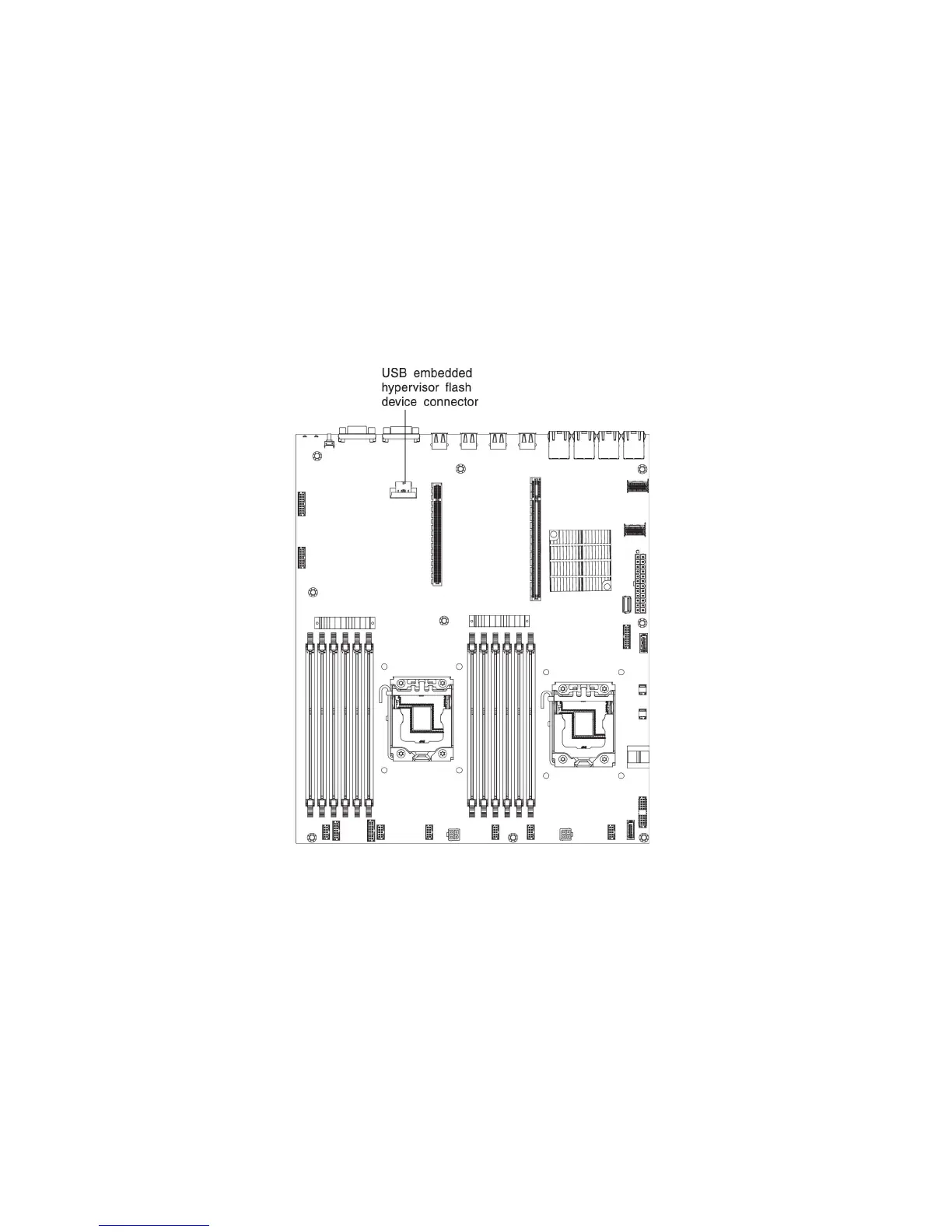

5. Locate the embedded hypervisor USB flash device connector on the system
board as shown in the following illustration:
6. Slide the lockbar toward the riser-card assembly to the locked position until it
is seated firmly.
Chapter 2. Installing optional devices 59
