Server internal LEDs, connectors, and jumpers
The illustrations in this section show the connectors, LEDs, and jumpers on the
internal boards. The illustrations might differ slightly from your hardware.
System-board internal connectors

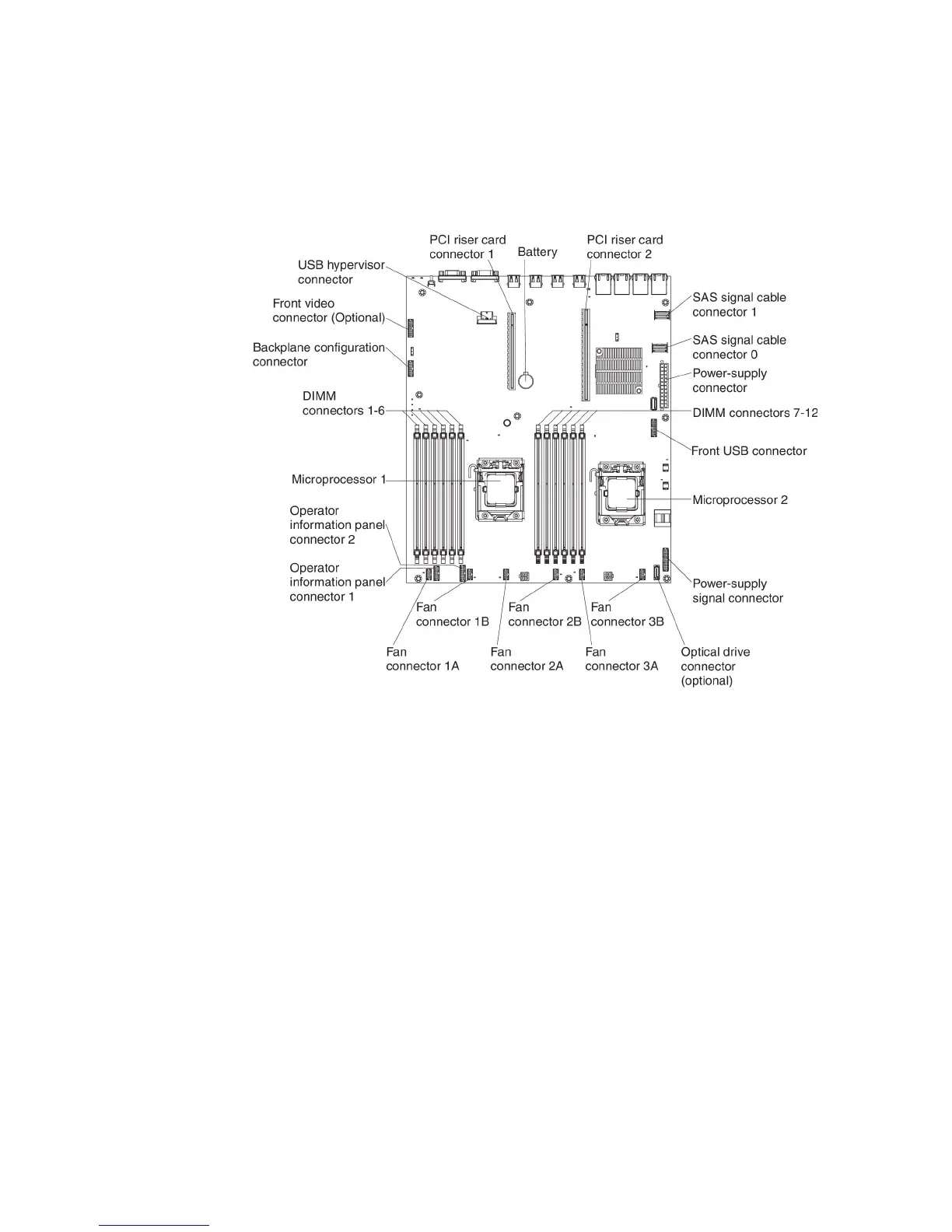

The following illustration shows the internal connectors on the system board.
System-board external connectors
The following illustration shows the external input/output connectors on the
system board.
26 System x3530 M4 Type 7160: Installation and Service Guide
