System-board optional device connectors

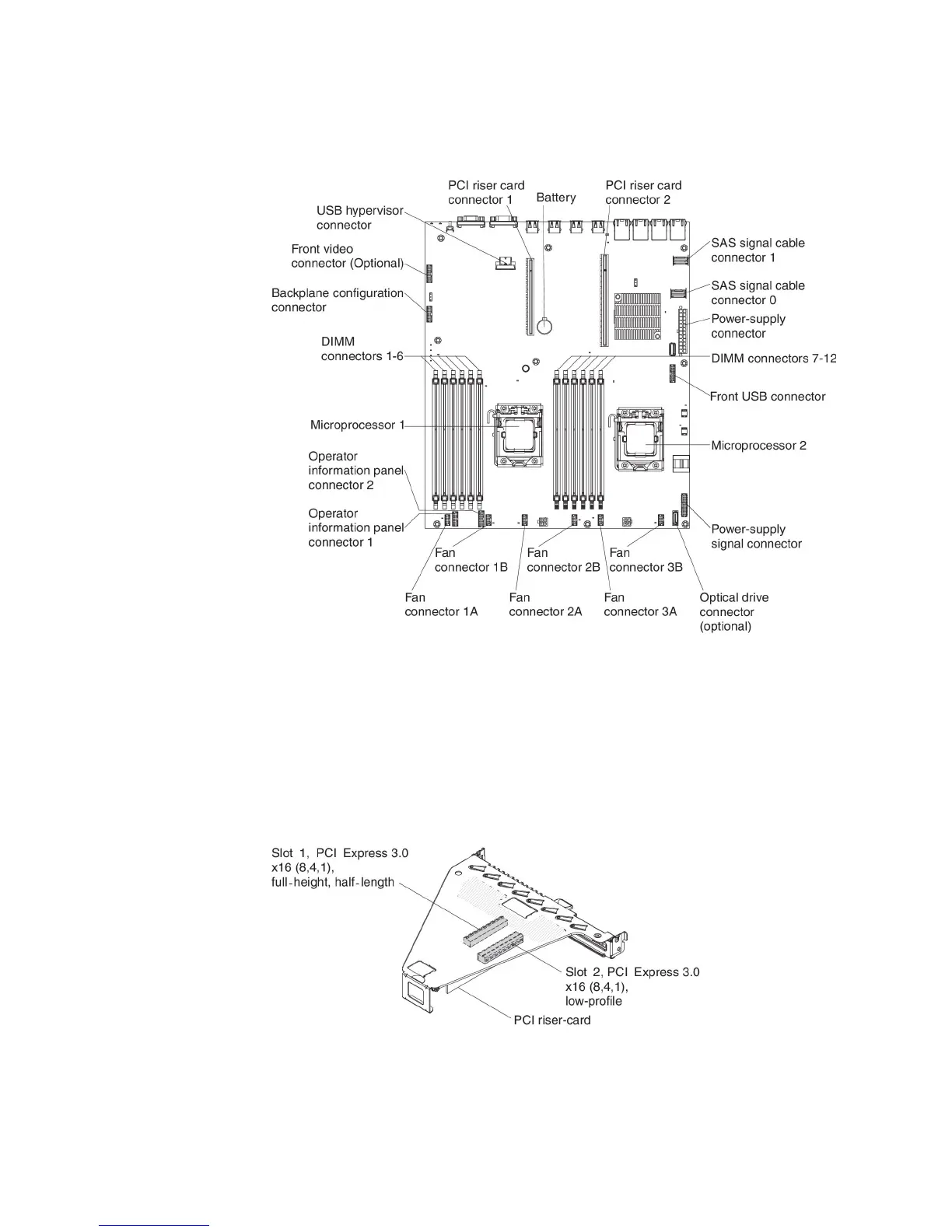

The following illustration shows the connectors on the system board for
user-installable optional devices.
PCI riser cards
The following illustrations show the connectors on the PCI riser cards in the
riser-card assemblies.
The server comes with one PCI riser-card assembly installed in PCI riser connector
1. The riser-card assembly provides either one or two PCI slots, depending on the
server model. The following illustrations shows the connectors on PCI riser-card
assembly 1.
Chapter 2. Installing optional devices 29
