5. If you are instructed to return the air baffle, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Replacing the air baffle
To install the air baffle, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.

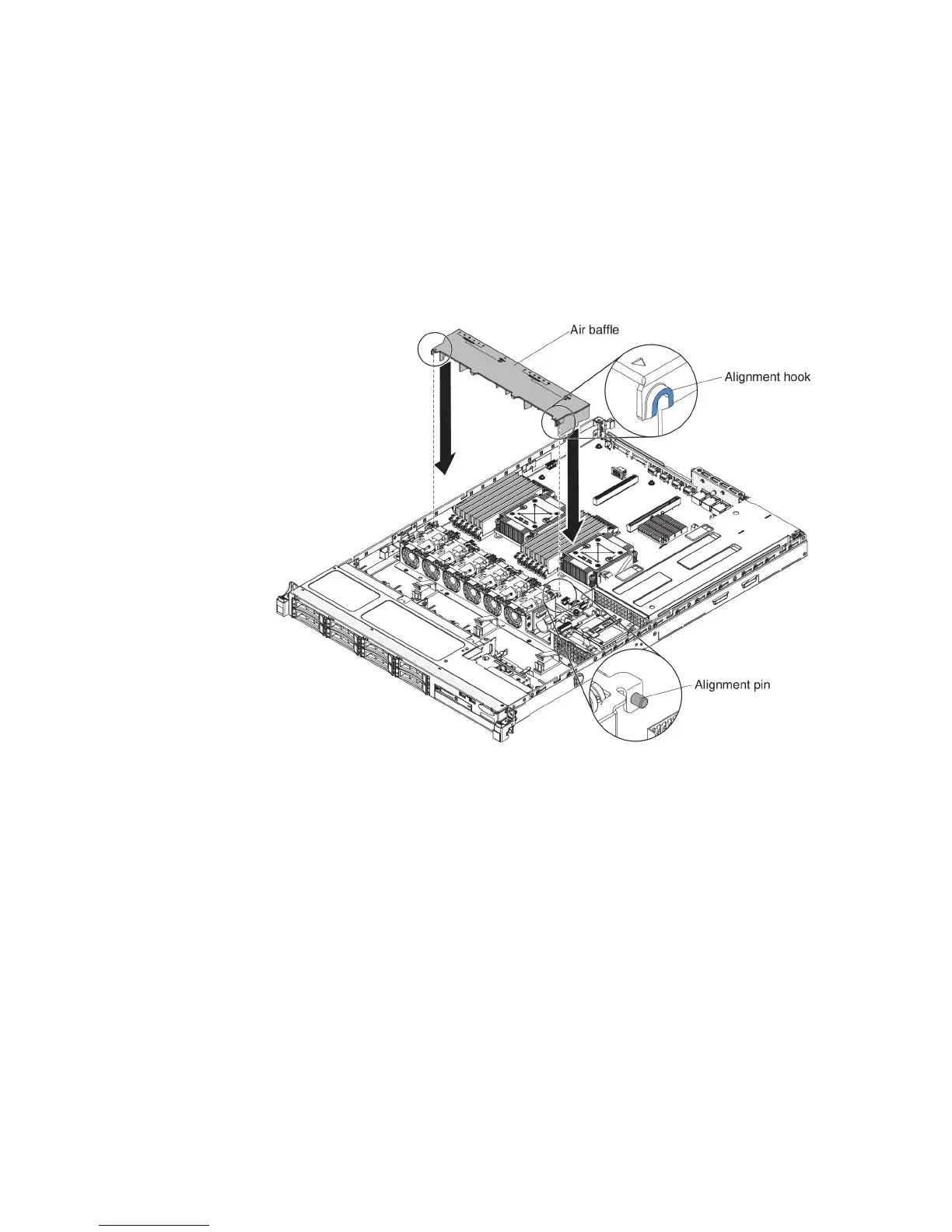

2. Align the tabs on the sides of the air baffle with the slots on the fan cage and
lower the air baffle into the server.
Note: Make sure that no cable is pinched.
366 System x3530 M4 Type 7160: Installation and Service Guide
