6. Remove the adapter, if necessary, from the PCI riser-card assembly (see
“Removing an adapter” on page 299).
7. Set the adapter and PCI riser-card assembly aside.
8. If you are instructed to return the PCI riser-card assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Replacing a PCI riser-card assembly
To replace a PCI riser-card assembly, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Install the adapter in the new PCI riser-card assembly (see “Replacing an
adapter” on page 300).
3. Set any jumpers or switches on the adapter as directed by the adapter
manufacturer.

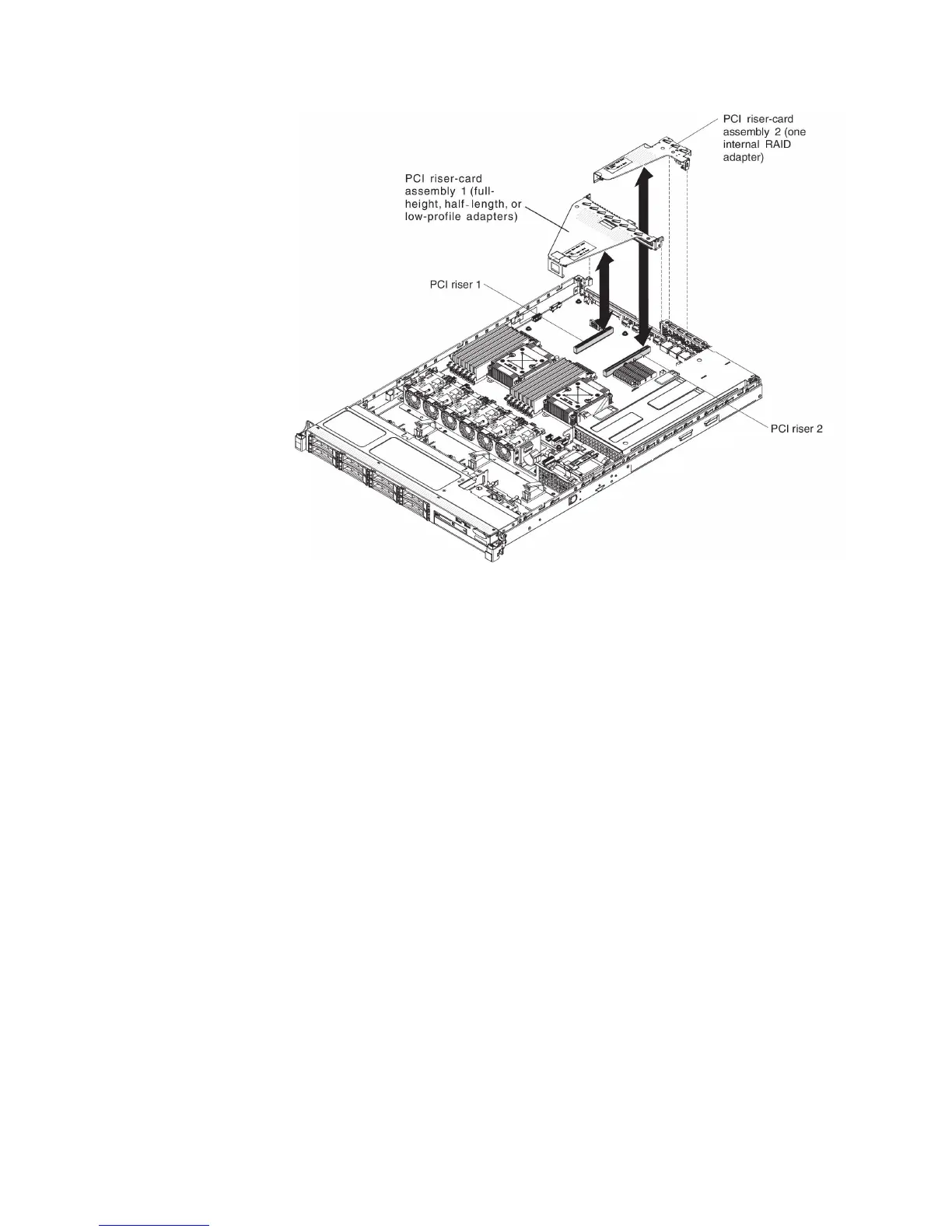

4. Align the PCI riser-card assembly with the PCI riser connector on the system
board; then, press down firmly until the PCI riser-card assembly is seated
correctly in the connector on the system board.
Chapter 6. Removing and replacing components 329
