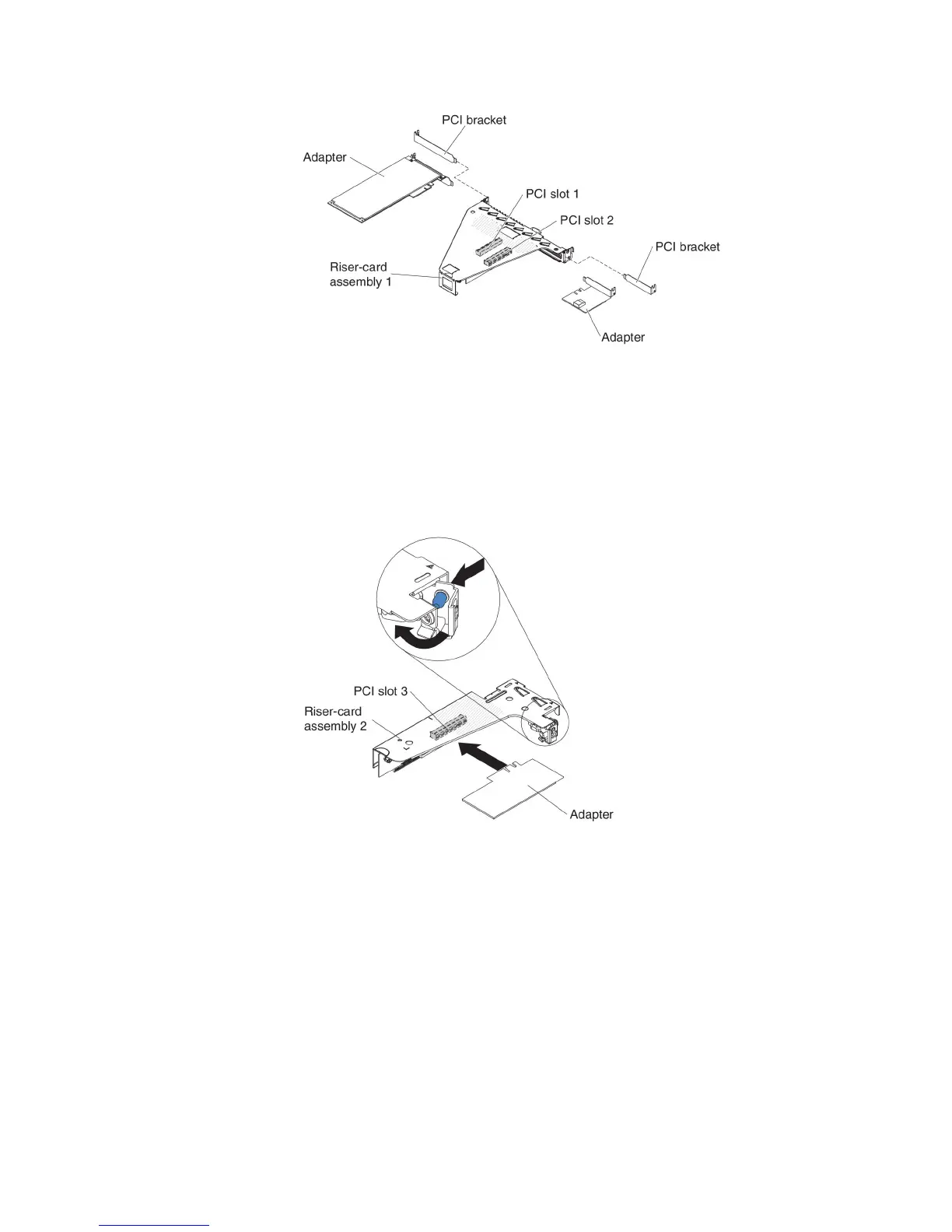

4. Installing a ServeRAID adapter in PCI riser-card assembly 2:
a. Insert the adapter into the riser-card assembly, aligning the edge connector
on the adapter with the connector on the riser-card assembly. Press the
edge of the connector firmly into the riser-card assembly. Make sure that
the adapter snaps into the riser-card assembly securely.
b. Rotate the retention latch to the close position. Make sure the retention
latch engages the adapter securely; then, push in the release pin to lock the
retention latch in place.
5. Install the PCI riser-card assembly in the server (see “Replacing a PCI
riser-card assembly” on page 329).
6. Perform any configuration tasks that are required for the adapter.
7. Install the cover (see “Replacing the server top cover” on page 67).
8. Install the server in the rack cabinet (see the Rack Installation Instructions that
come with the server for instructions).
9. Reconnect the power cord and any cables that you removed.
10. Turn on the peripheral devices and the server.
Chapter 6. Removing and replacing components 301
