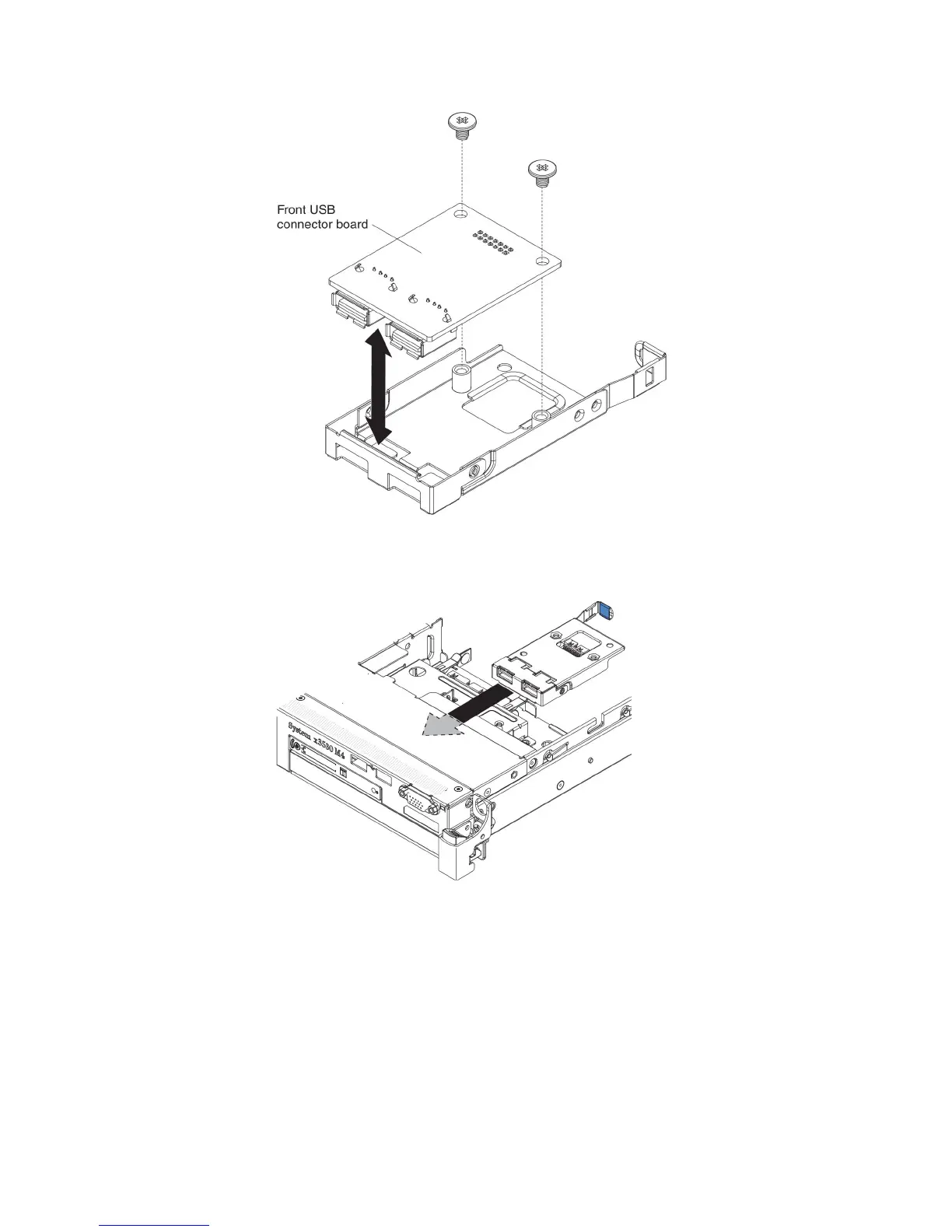

3. Install the screws to secure the USB connector board to the USB assembly.
4. From the front of the server, slide the USB assembly into the USB slot until it
clicks into place.
5. Connect one end of the USB cable to the connector on the USB connector
board; then, connect the other end of the USB cable to the connector on the
system board. Route the USB cable as shown in the following illustration.
6. Align the front video connector (if available) with the slot on the server and
install the two screws to secure it to the server.
7. Connect the video/USB cable to the connector on the system board.
8. Secure the USB cable with any cable clips in the server.
9. Replace the cover (see “Replacing the server top cover” on page 67).
338 System x3530 M4 Type 7160: Installation and Service Guide
