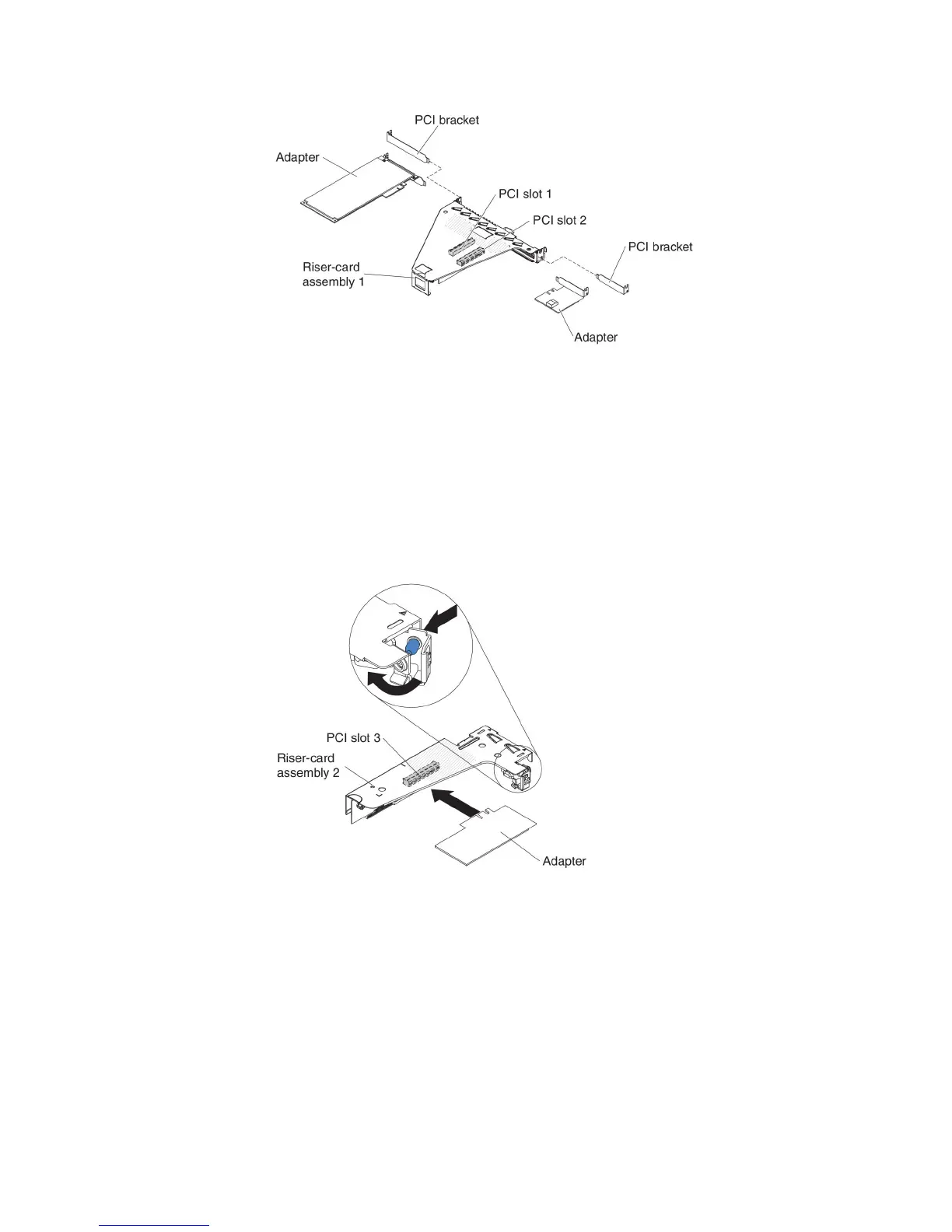

6. Installing a ServeRAID adapter in PCI riser-card assembly 2:
a. Pull the release pin to unlock the release latch.
b. Rotate the retention latch to the open position.
c. Insert the adapter into the PCI riser-card assembly, aligning the edge
connector on the adapter with the connector on the PCI riser-card assembly.
Press the edge of the connector firmly into the PCI riser-card assembly. Make
sure that the adapter snaps into the PCI riser-card assembly securely.
d. Rotate the retention latch to the close position. Make sure the retention latch
engages the adapter securely; then, push in the release pin to lock the
retention latch.
7. Install the PCI riser-card assembly in the server (see “Installing a PCI riser-card
assembly” on page 45).
8. Perform any configuration tasks that are required for the adapter.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 65.
48 System x3530 M4 Type 7160: Installation and Service Guide
