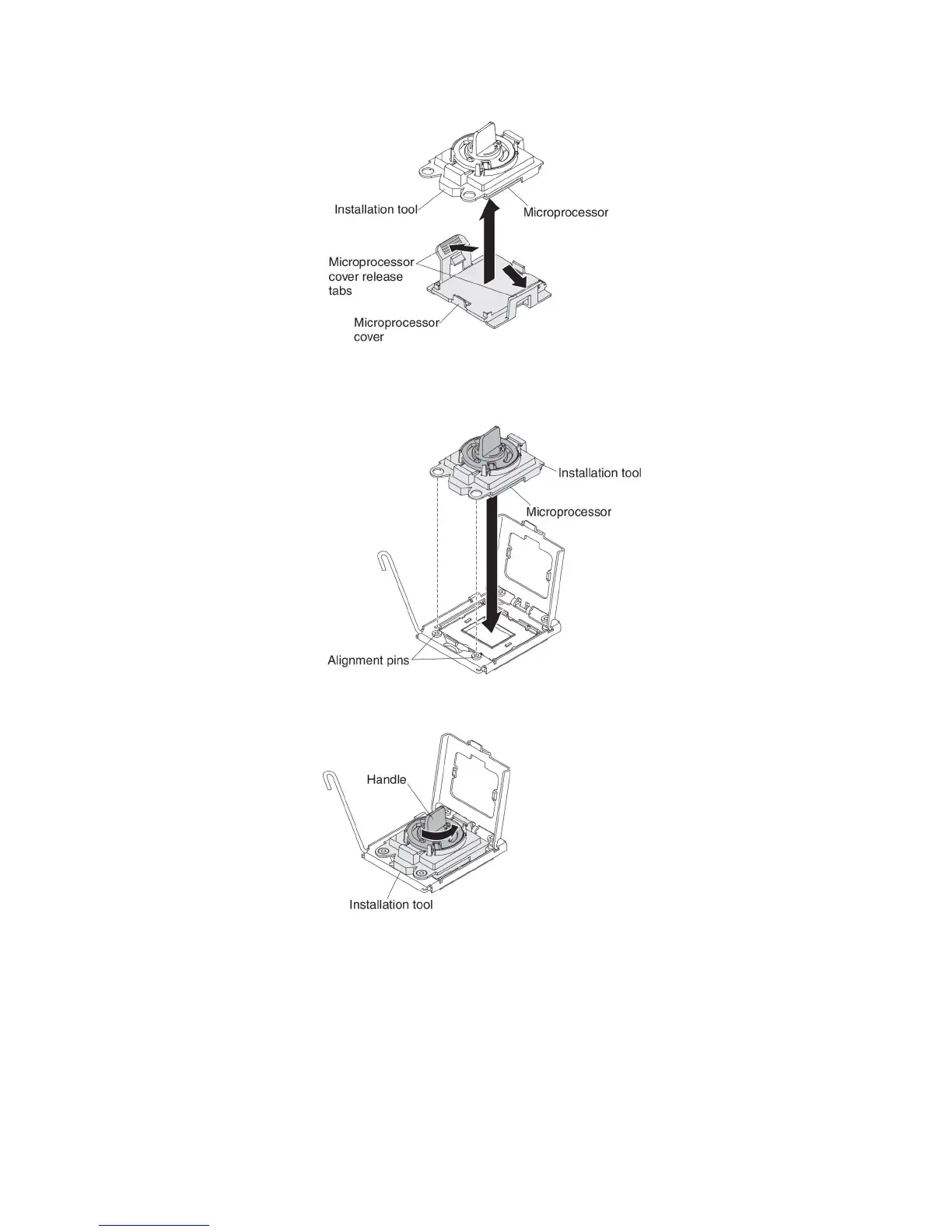

installation tool with the microprocessor attached.
e. Carefully align the microprocessor installation tool over the microprocessor
socket. .
Note: The microprocessor fits only one way in the socket.
f. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket.
g. Take off the microprocessor installation tool from the microprocessor
socket and close the microprocessor bracket frame.
h. Carefully close the microprocessor release lever to the closed position to
secure the microprocessor in the socket.
9. Install the heat sink that came with the microprocessor:
a. Remove the plastic protective cover from the bottom of the heat sink.
Attention: Do not touch the thermal grease on the bottom of the heat
sink after you remove the plastic cover. Touching the thermal grease will
contaminate it. See Thermal grease for more information.
Chapter 2. Installing optional devices 53
