IBM System x3550 M5 Type 5463 User Manual

5. Remove the RAID adapter battery or flash power module from the chassis.
Steps for removing the RAID adapter battery or flash power module for
2.5-inch hard disk drive server models.
a. Open the retention clip to remove the battery or power module.

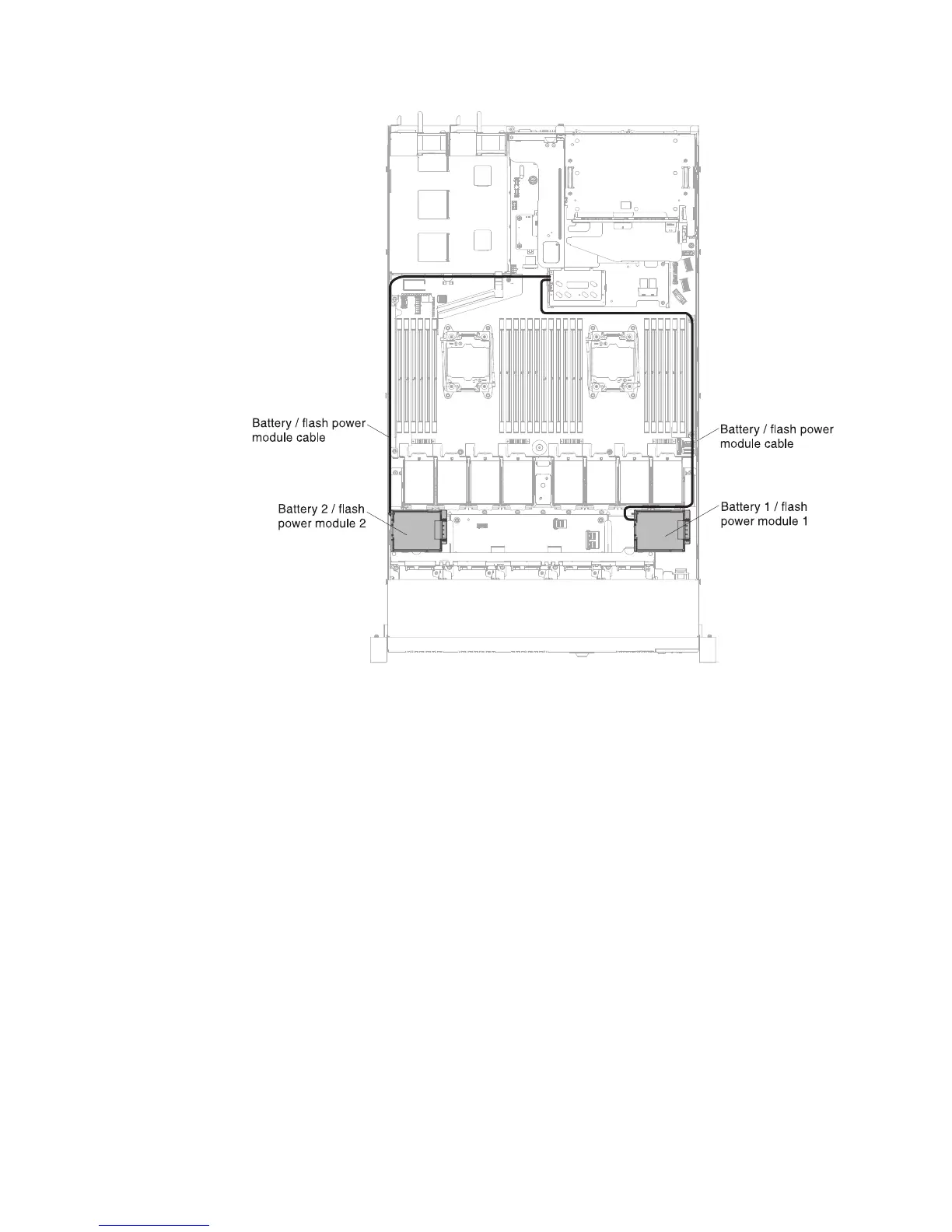

Figure 40. RAID adapter battery or flash power module cable routing for 2.5-inch hard disk
drive server models.
132 IBM System x3550 M5 Type 5463: Installation and Service Guide

IBM System x3550 M5 Type 5463 Specifications

General

Brand	IBM
Model	System x3550 M5 Type 5463
Category	Server
Language	English
