adapter on the riser card and install the riser-card assembly in the server (see
“Replacing an adapter” on page 180 and “Replacing a PCI riser-card
assembly” on page 172).
5. Connect one end of the cable to the RAID adapter memory module.
6. Route the cable along the chassis.
Note: The cable routing is different between 2.5-inch and 3.5-inch hard disk
drive server models.

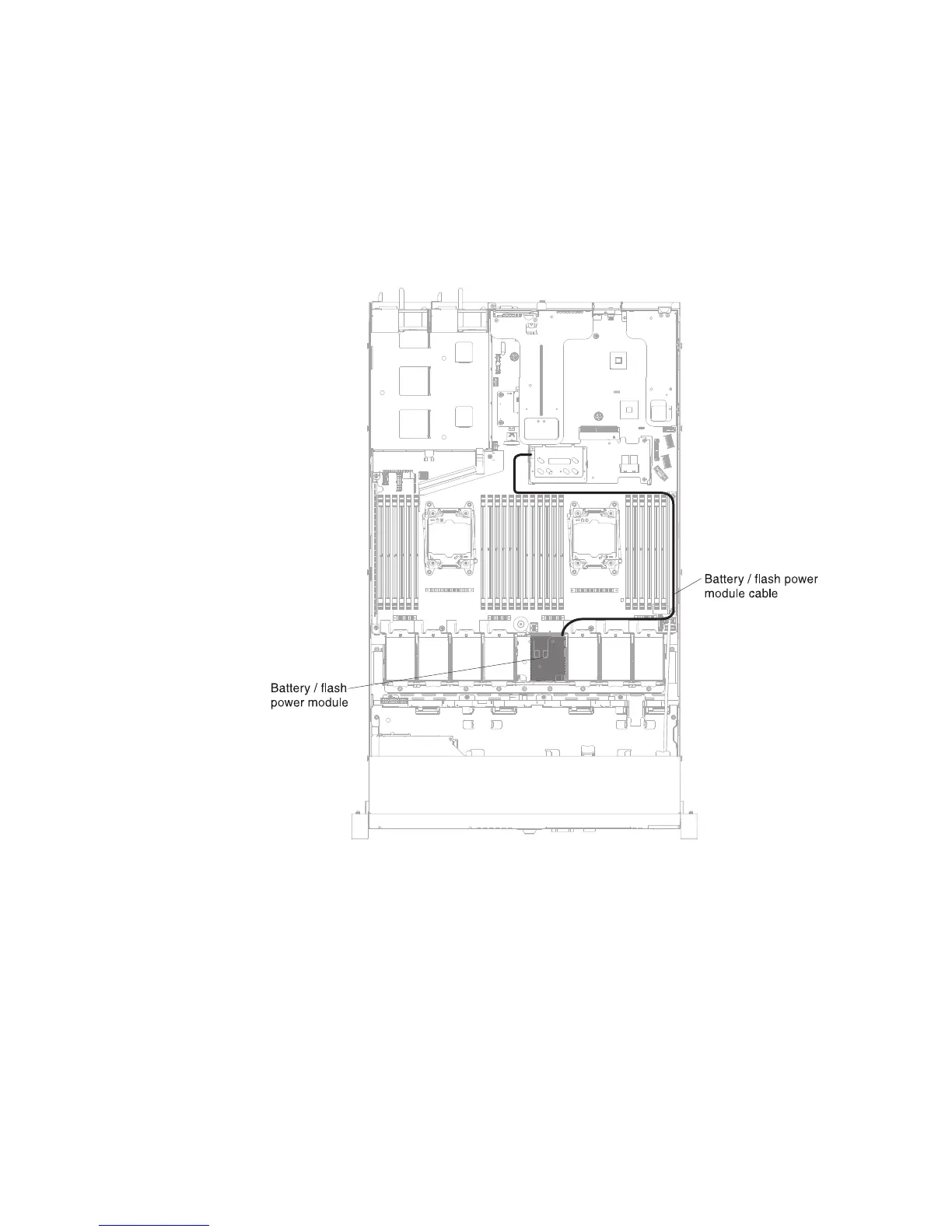

Figure 43. RAID adapter battery or flash power module cable connection for 3.5-inch hard
disk drive server models.
Chapter 5. Removing and replacing components 135
