Steps for installing the RAID adapter battery or flash power module for
3.5-inch hard disk drive server models.
a. Press the blue release tabs and lift the battery or power module holder
upward.
b. Align the cable connector with the slot on the holder. Place the battery or
flash power module into the holder and make sure that the holder engages
the battery or flash power module securely.
c. Connect the other end of the cable to the battery or flash power module.
d. Press the blue release tabs and lower the battery or power module holder
into the chassis.
Retention clip
Holder
Battery / flash power module

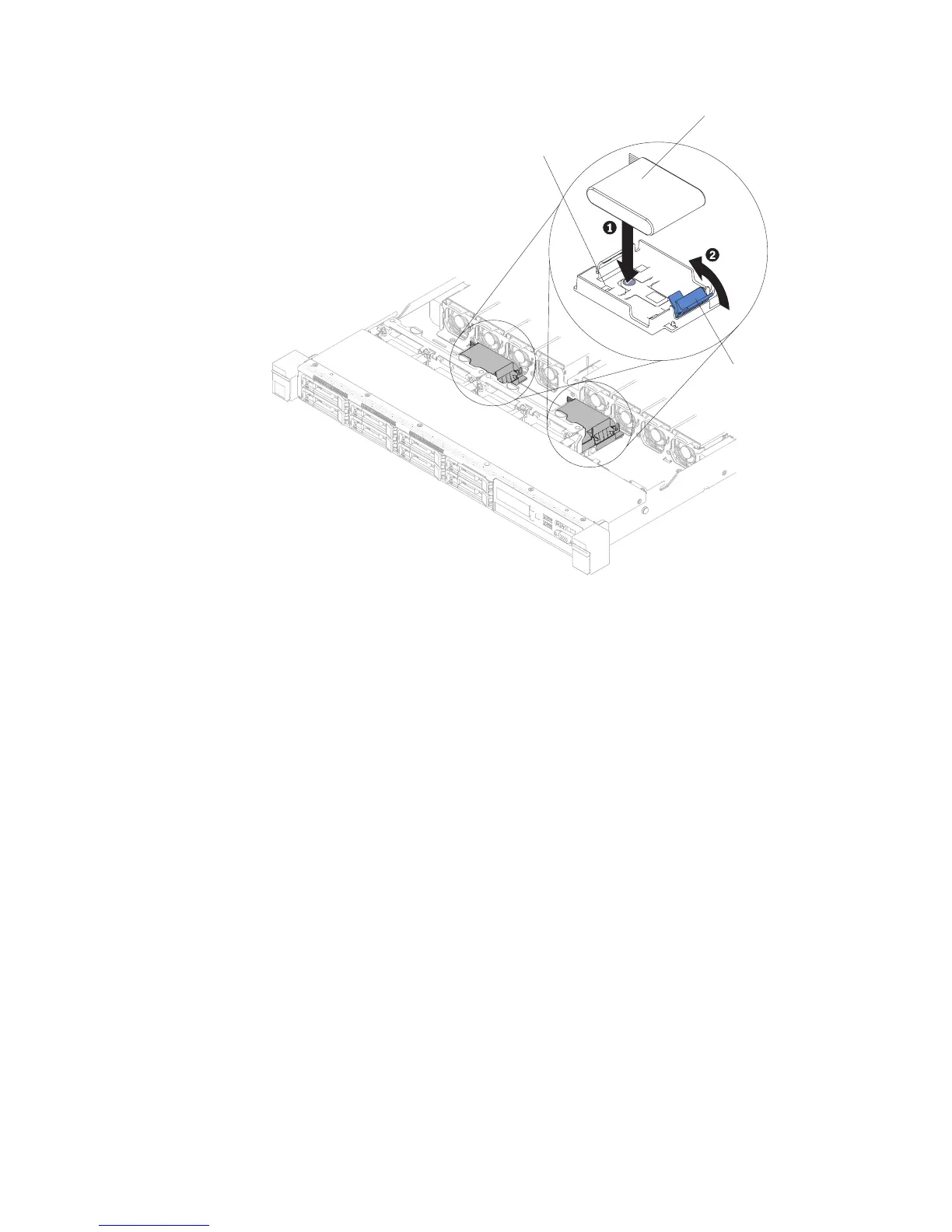

Figure 45. RAID adapter battery or flash power module installation for 2.5-inch hard disk
drive server models
Chapter 5. Removing and replacing components 137
