Steps for installinga4x3.5-inch hot-swap hard disk drive backplane.
a. Carefully lower the hard disk drive backplane until it is fully seated in the
chassis.
b. Secure the backplane to the chassis by pressing the release latches.
10 x 2.5-inch hard disk drive backplane

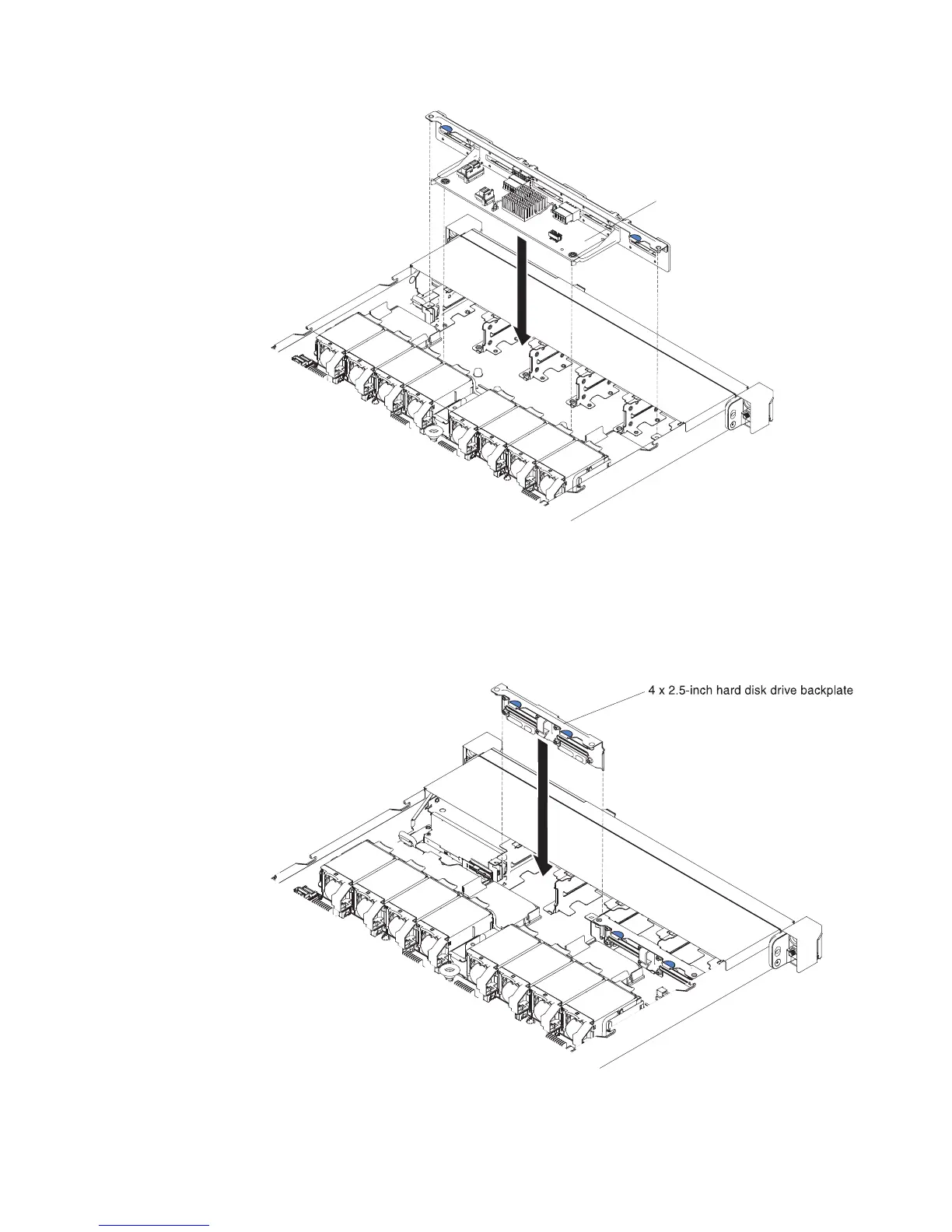

Figure 121. 10 x 2.5-inch hot-swap hard disk drive backplane installation
Figure 122. 4 x 3.5-inch hot-swap hard disk drive backplane installation
Chapter 5. Removing and replacing components 205
