IBM x3100 M5 Type 5457 User Manual

v Make sure that the tabs on the air baffle are inserted into the holes on the
chassis and no cables are not caught or pinched.
v For proper cooling and airflow, reinstall the air baffle before you turn on the
server. Operating the server with the air baffle removed might damage server
components.
Microprocessor power cable

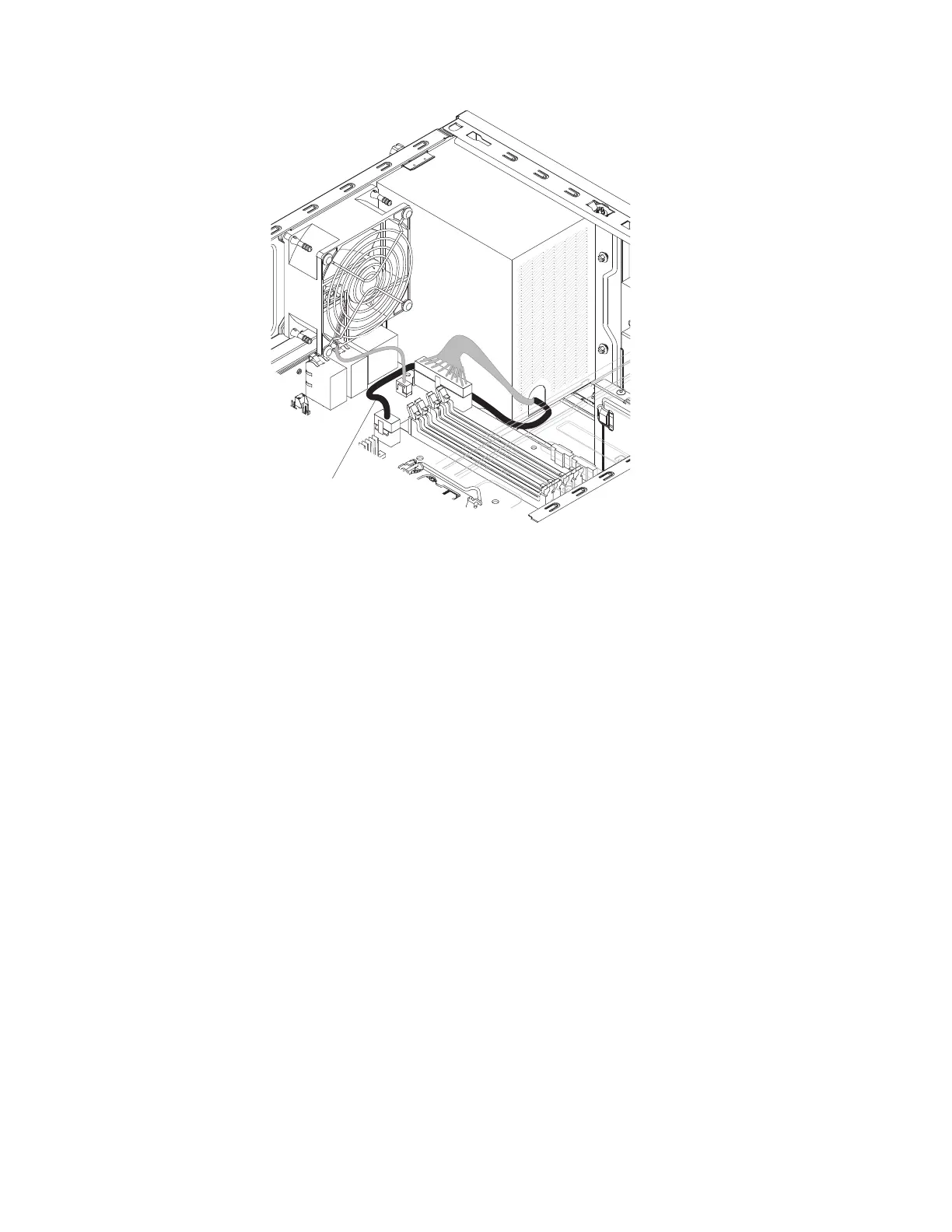

Figure 62. Microprocessor power cable routing when installing air baffle for 4U server model
with non-hot-swap power supplies
86 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
