8. Connect the required cables to the adapter. Route cables so that they do not
block the air flow from the fan.
9. Rotate the rear adapter-retention bracket to the closed (locked) position.
10. Stand the server back up in its vertical position.
11. Install and lock the side cover see “Replacing the side cover” on page 182).
12. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Removing a memory module
Use this information to remove a memory module.
To remove a dual inline memory module (DIMM) on 4U server models with
non-hot-swap power supplies, complete the following steps. For the 5U server
model with hot-swap power supplies, please see the next sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
4. Remove the side cover (see “Removing the side cover” on page 38).
5. Remove the air baffle (see “Removing the air baffle” on page 39).
6. Locate the DIMM connector that contains the DIMM that is to be replaced (see
“System-board internal connectors” on page 30).
Adapter
Rear adapter
retention
bracket

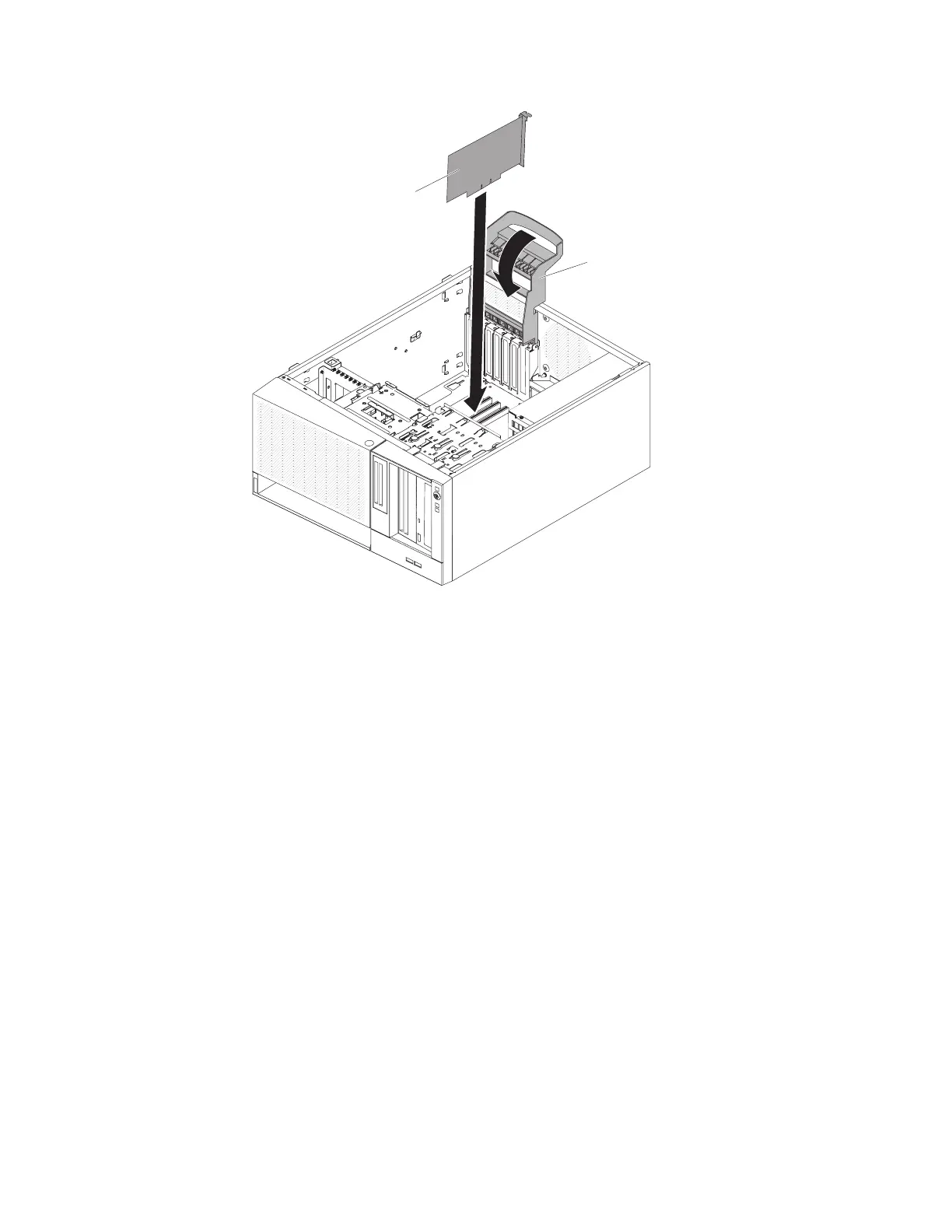

Figure 186. Adapter installation for 5U server model with hot-swap power supplies
272 System x3100 M5 Type 5457: Installation and Service Guide
