Attention: For proper cooling and airflow, reinstall the air baffle, making sure
all cables are out of the way, before you turn on the server. Operating the
server with the air baffle removed might damage server components.
6. If you are instructed to return the air baffle, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Removing the bezel
This procedure applies only to 4U server models with non-hot-swap power
supplies.
When you work with some devices on 4U server models with non-hot-swap power
supplies, such as the drives in bays 3 through 6, you must first remove the bezel to
access the devices.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Press the button on the left edge of the bezel; then, rotate the left side of the
bezel away from the server until it disengages and set it aside.
Note: When rotating the bezel to a certain point, it may automatically
disengage from the chassis.
Air baffle

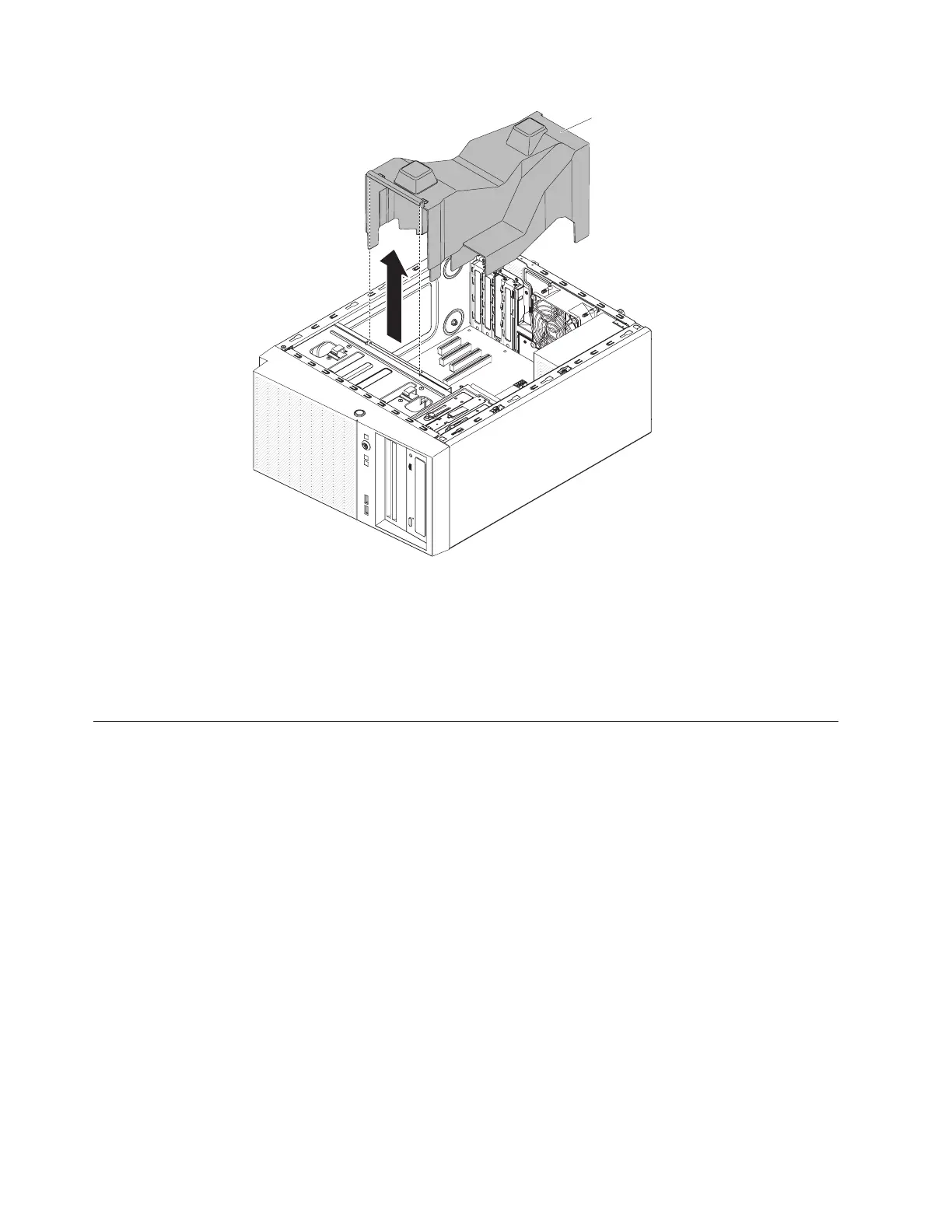

Figure 20. Air baffle removal for 4U server model with non-hot-swap power supplies
40 System x3100 M5 Type 5457: Installation and Service Guide
