1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Disconnect the power cord from the power supply that is to be removed.
3. Press down on the orange release lever and pull the power supply out of the
bay, using the handle.
4. If you are instructed to return the power supply, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Replacing the hot-swap power supply
This procedure applies only to the 5U server model with hot-swap power supplies.
The following items describe the type of power supply that the server supports
and other information that you must consider when you install a power supply:
v To confirm that the server supports the power supply that you are installing, see
http://www.ibm.com/systems/info/x86servers/serverproven/compat/us.
v The server comes standard with one 430-watt hot-swap power supply. The input
voltage is 110 V ac or 220 V ac auto-sensing.
v These power supplies are designed for parallel operation. In the event of a
power-supply failure, the redundant power supply continues to power the
system. The server supports a maximum of two power supplies.
v The server can run fully configured with one power supply. For redundancy
support, you must install the second hot-swap power supply.
Note: You cannot mix high-efficiency and non-high-efficiency power supplies in
the server.
Statement 5
Hot-swap
power supply
Release
lever

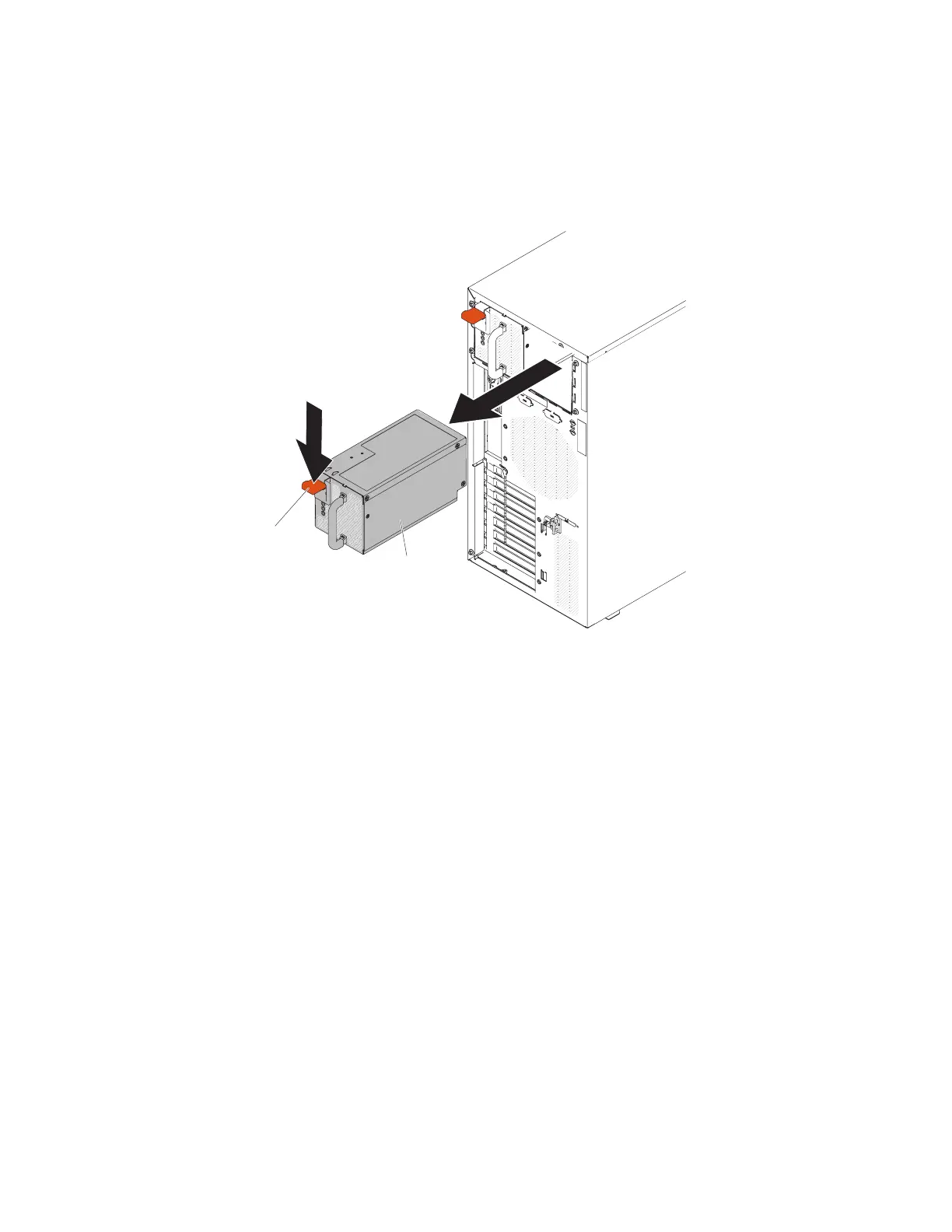

Figure 179. Hot-swap power supply removal for 5U server model with hot-swap power
supplies
264 System x3100 M5 Type 5457: Installation and Service Guide
