Removing the upper bezel
This procedure applies only to the 5U server model with hot-swap power supplies.
To access the DVD drive or tape drive on the 5U server model with hot-swap
power supplies, you must first remove the upper bezel to access the devices.
To remove the upper bezel on the 5U server model with hot-swap power supplies,
complete the following steps.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. If you are replacing a non-hot-swap component, turn off the server and all
attached devices; then, disconnect all power cords and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 38).
4. Remove the lower bezel (see “Removing the lower bezel” on page 42).
5. Carefully pull the two bezel clips on the left side of the upper bezel; then,
rotate the upper bezel to the right side of the server to disengage the two
right-side tabs from the chassis.
6. If you are instructed to return the upper bezel, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Bezel clips

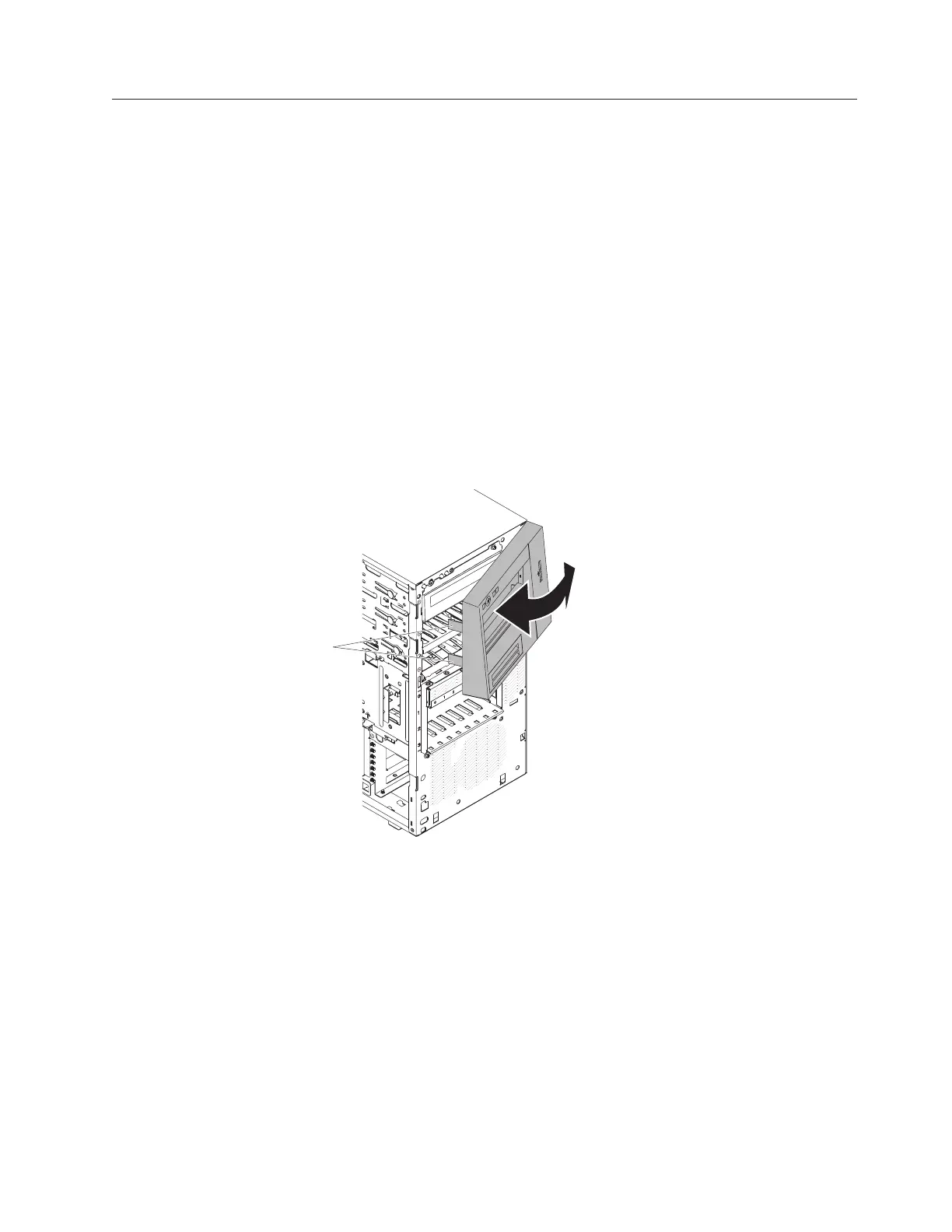

Figure 24. Lower bezel removal for 5U server model with hot-swap power supplies
Chapter 2. Installing optional devices 43
