4. Install and lock the side cover (see “Replacing the side cover” on page 182).
5. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Removing the bezel
This procedure applies only to 4U server models with non-hot-swap power
supplies.
When you work with some devices on 4U server models with non-hot-swap power
supplies, such as the drives in bays 3 through 6, you must first remove the bezel to
access the devices.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Press the button on the left edge of the bezel; then, rotate the left side of the
bezel away from the server until it disengages and set it aside.
Note: When rotating the bezel to a certain point, it may automatically
disengage from the chassis.
Air baffle

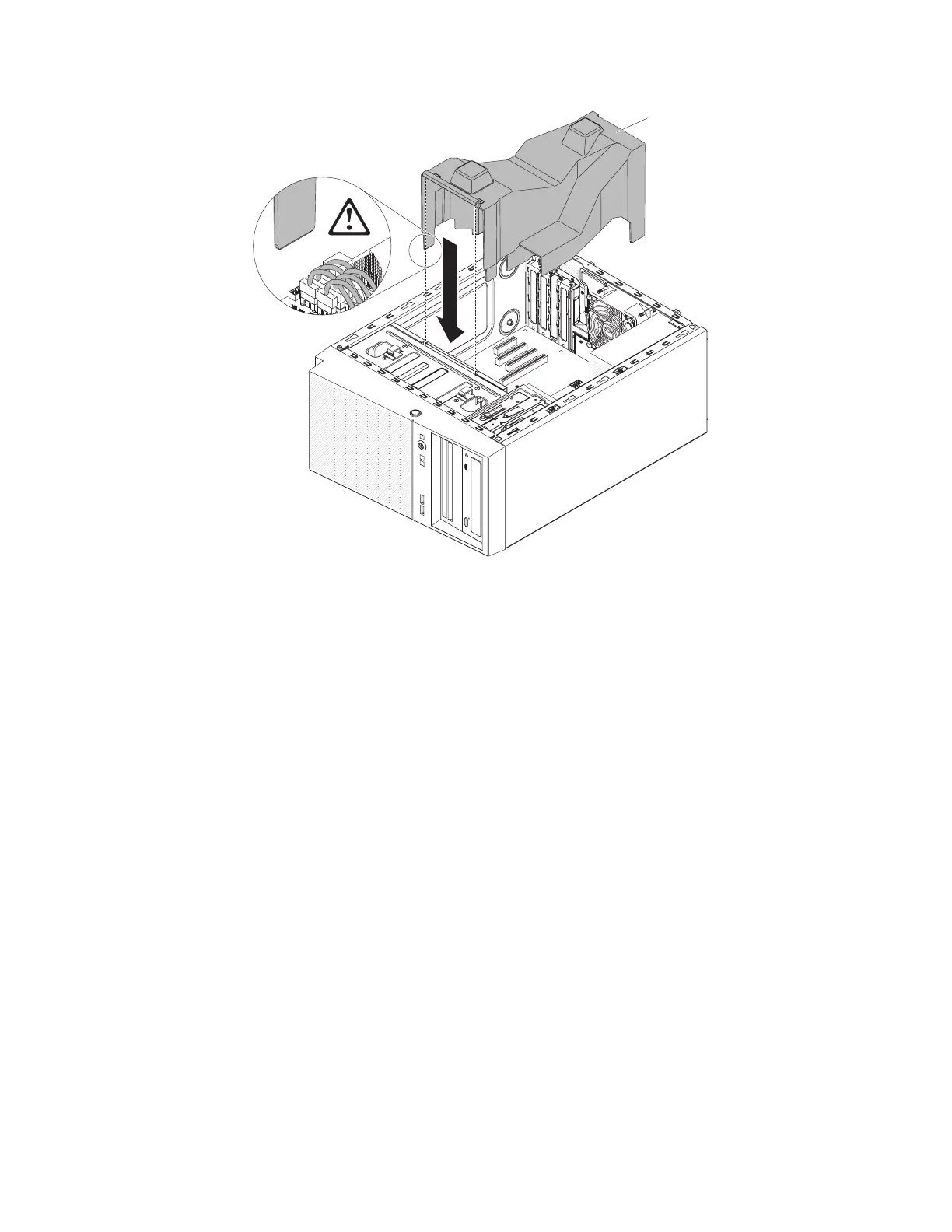

Figure 84. Air baffle installation for 4U server model with non-hot-swap power supplies
186 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
