Installing the operating temperature enhancement kit
Use this information to install the operating temperature enhancement kit
Attention: To ensure proper cooling and airflow, do not operate the server for
more than 30 minutes with the side cover removed.
To install the operating temperature enhancement kit on 4U server models with
non-hot-swap power supplies, complete the following steps. For the 5U server
model with hot-swap power supplies, please see the next sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Remove the bezel (see “Removing the bezel” on page 40).
4. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
5. Remove the side cover (see “Removing the side cover” on page 38).
6. Insert the thermal sensor board into the thermal sensor holder. Attach the
holder onto the server and make sure the cabling goes through the hole as
shown in the illustration.
7. Connect the thermal sensor connector to the system board and remember to
close the cable clips to secure the cable.
Thermal sensor
connector
Thermal sensor
Cable clips

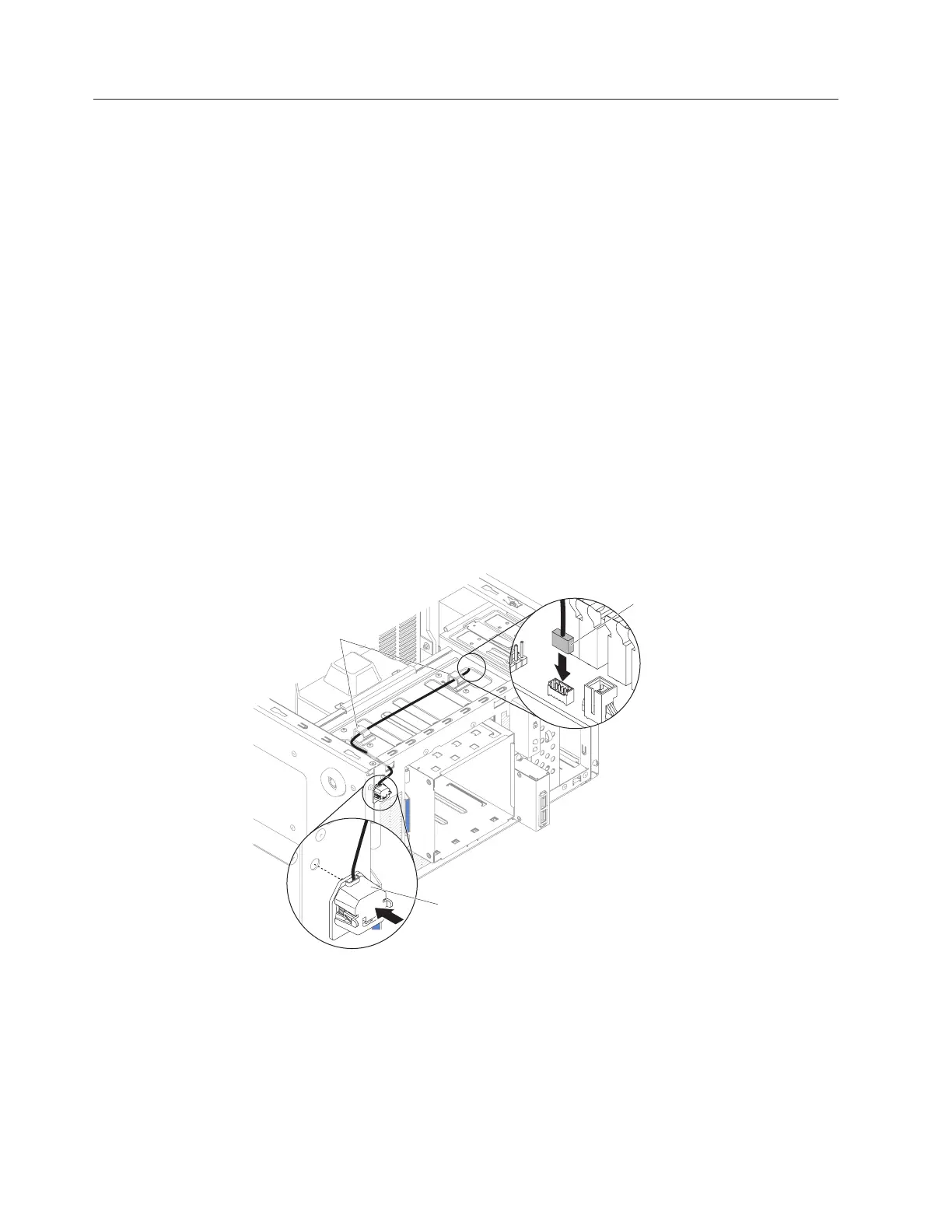

Figure 56. Thermal sensor installation for 4U server models with non-hot-swap power
supplies
80 System x3100 M5 Type 5457: Installation and Service Guide
