Removing the lower bezel
This procedure applies only to the 5U server model with hot-swap power supplies.
To access the hard disk drives on the 5U server model with hot-swap power
supplies, you must first remove the lower bezel.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. If you are replacing a non-hot-swap component, turn off the server and all
attached devices; then, disconnect all power cords and external cables.
3. Press the blue-colored release button on the right side of the lower bezel and
rotate the lower bezel downward to disengage from the chassis.
4. If you are instructed to return the lower bezel, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.

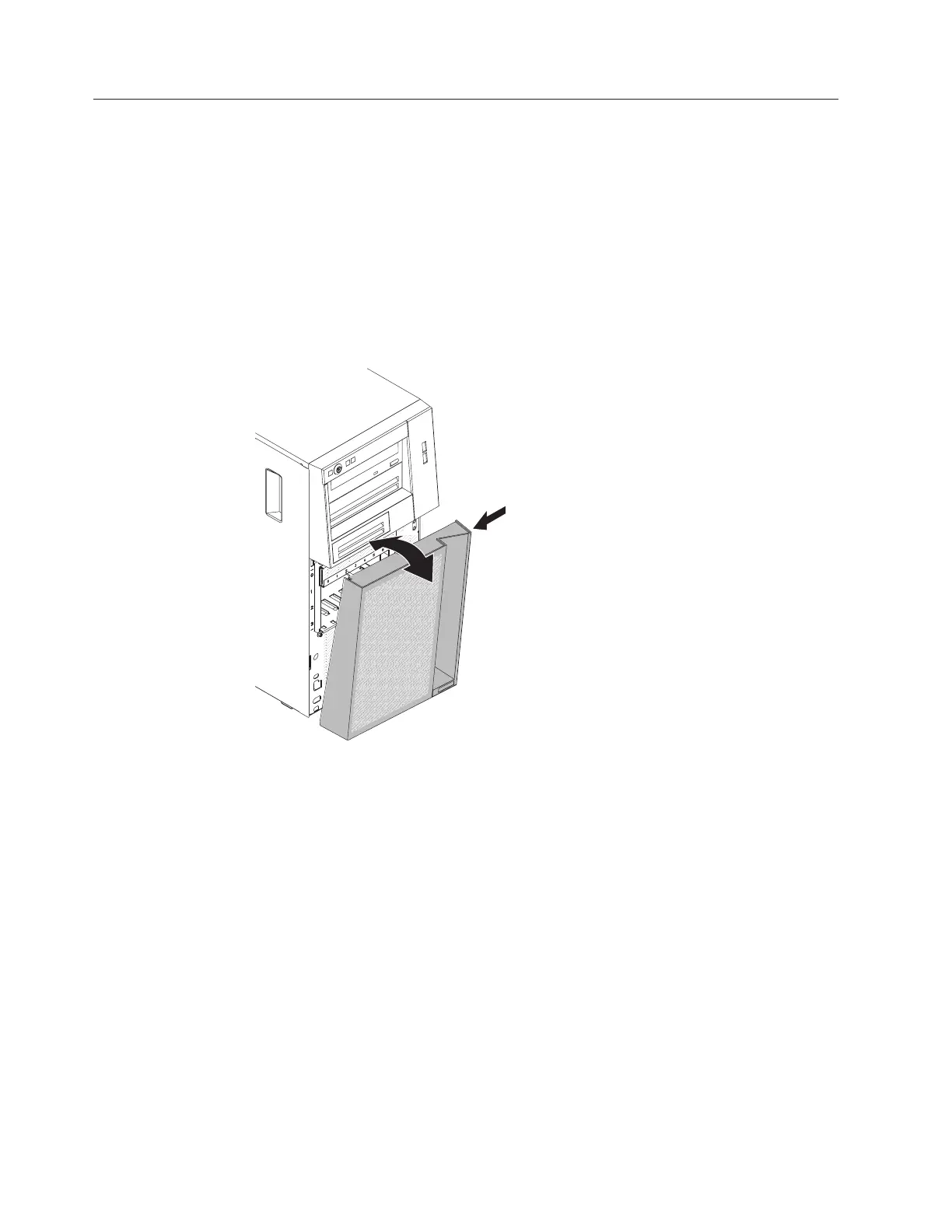

Figure 23. Lower bezel removal for 5U server model with hot-swap power supplies
42 System x3100 M5 Type 5457: Installation and Service Guide
