IBM x3100 M5 Type 5457 User Manual

Replacing the bezel
This procedure applies only to 4U server models with non-hot-swap power
supplies.
To install the bezel on 4U server models with non-hot-swap power supplies,
complete the following steps.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Insert the three tabs on the bezel into the corresponding holes in the front of
the server.
3. Rotate the bezel to the server until it locks securely into place.
4. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.

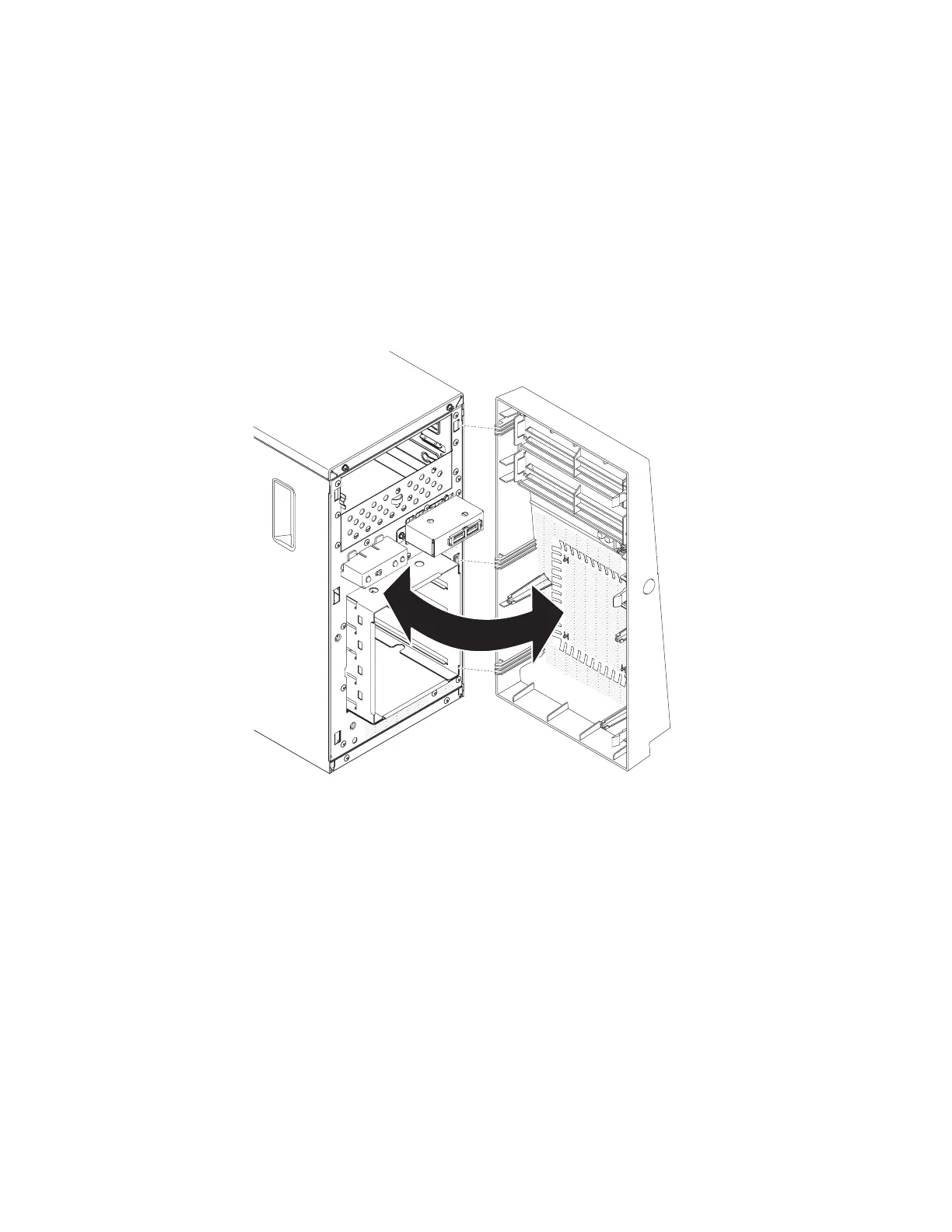

Figure 87. Bezel installation for 4U server model with non-hot-swap power supplies
188 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
