8. If you are instructed to return the hypervisor memory key, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Note: You must configure the server not to look for the hypervisor USB drive.
See “Configuring the server” on page 94 for information about disabling
hypervisor support.
Replacing the USB embedded hypervisor flash device
Use this information to replace a USB embedded hypervisor flash device.
To install a USB embedded hypervisor flash device on 4U server models with
non-hot-swap power supplies, complete the following steps. For the 5U server
model with hot-swap power supplies, please see the next sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Locate the USB embedded hypervisor flash device connector on the system
board.
Lockbar
USB embedded
hypervisor
flash device

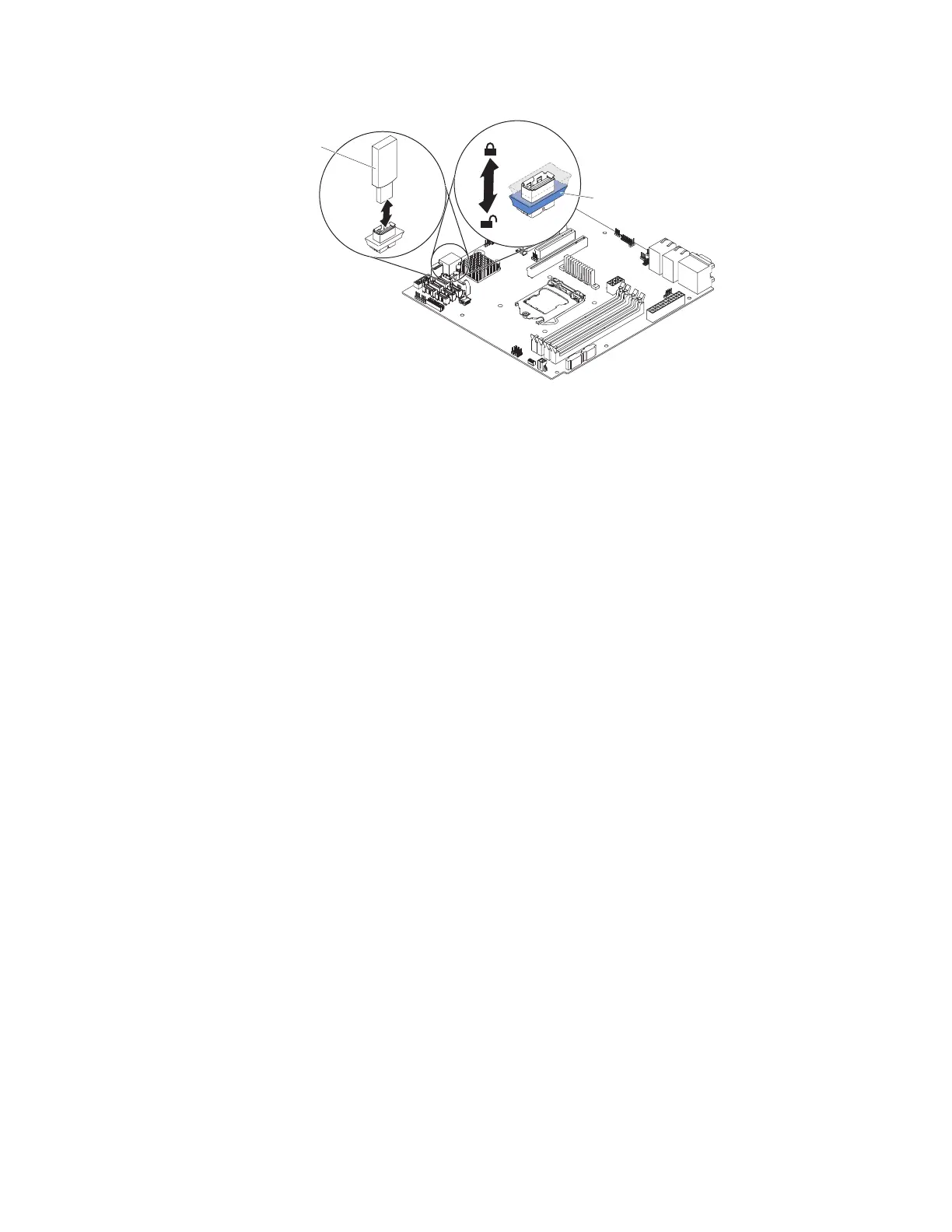

Figure 134. USB hypervisor flash device removal from system board for 5U server model
with hot-swap power supplies
230 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
