3. Align the USB flash device with the connector on the system board and push it
into the connector until it is firmly seated.
4. Slide the lockbar toward the riser-card assembly to the locked position until it
is seated firmly.
5. Install the air baffle (see “Replacing the air baffle” on page 185).
6. Install the side cover (see “Replacing the side cover” on page 182).
7. Stand the server back up in its vertical position.
8. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
To install the system board on the 5U server model with hot-swap power supplies,
complete the following steps. For 4U server models with non-hot-swap power
supplies, please see the above sub-section.
USB embedded
hypervisor flash
device connector

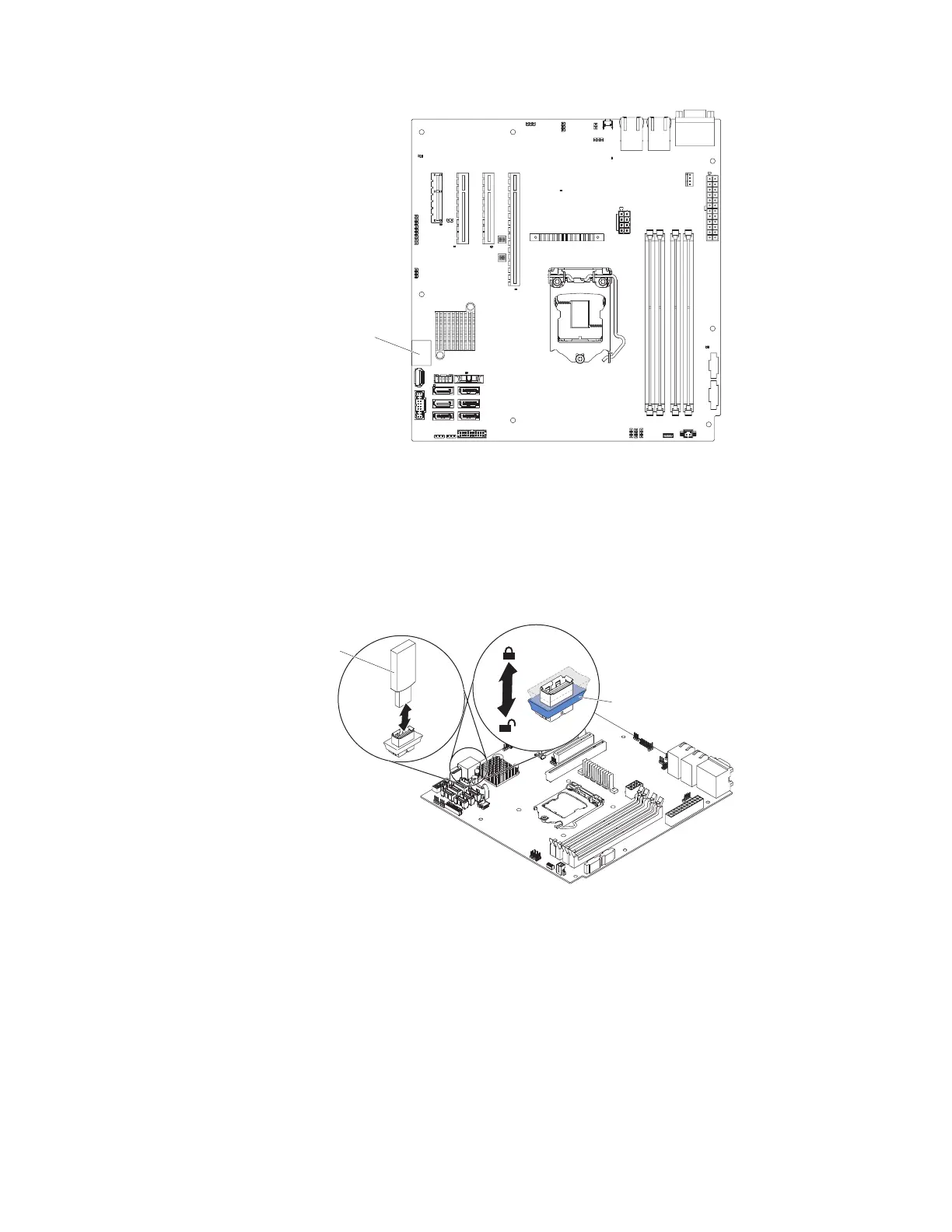

Figure 135. USB hypervisor flash device connector location on system board for 4U server
model with non-hot-swap power supplies
Lockbar
USB embedded
hypervisor
flash device
Figure 136. USB hypervisor flash device installation for 4U server model with non-hot-swap
power supplies
Chapter 6. Removing and replacing components 231
