Replacing the hard disk drive cage
Use this information to replace the hard disk drive cage
To install the hard disk drive cage on 4U server models with non-hot-swap power
supplies, complete the following steps. For the 5U server model with hot-swap
power supplies, please see the next sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Press the hard disk drive cage in until the release latches click into place.
Note: Make sure the backplate is already installed on the disk drive cage (see
“Replacing the simple-swap backplate” on page 234).
3. Install the air baffle (see “Replacing the air baffle” on page 185).
4. Install the side cover (see “Replacing the side cover” on page 182).
5. Stand the server back up in its vertical position.
6. Install the bezel (see “Replacing the bezel” on page 188).
7. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
To install the hard disk drive cage on 5U server models with hot-swap power
supplies, complete the following steps. For 4U server models with non-hot-swap
power supplies, please see the above sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Lower the hard disk drive cage into the chassis.

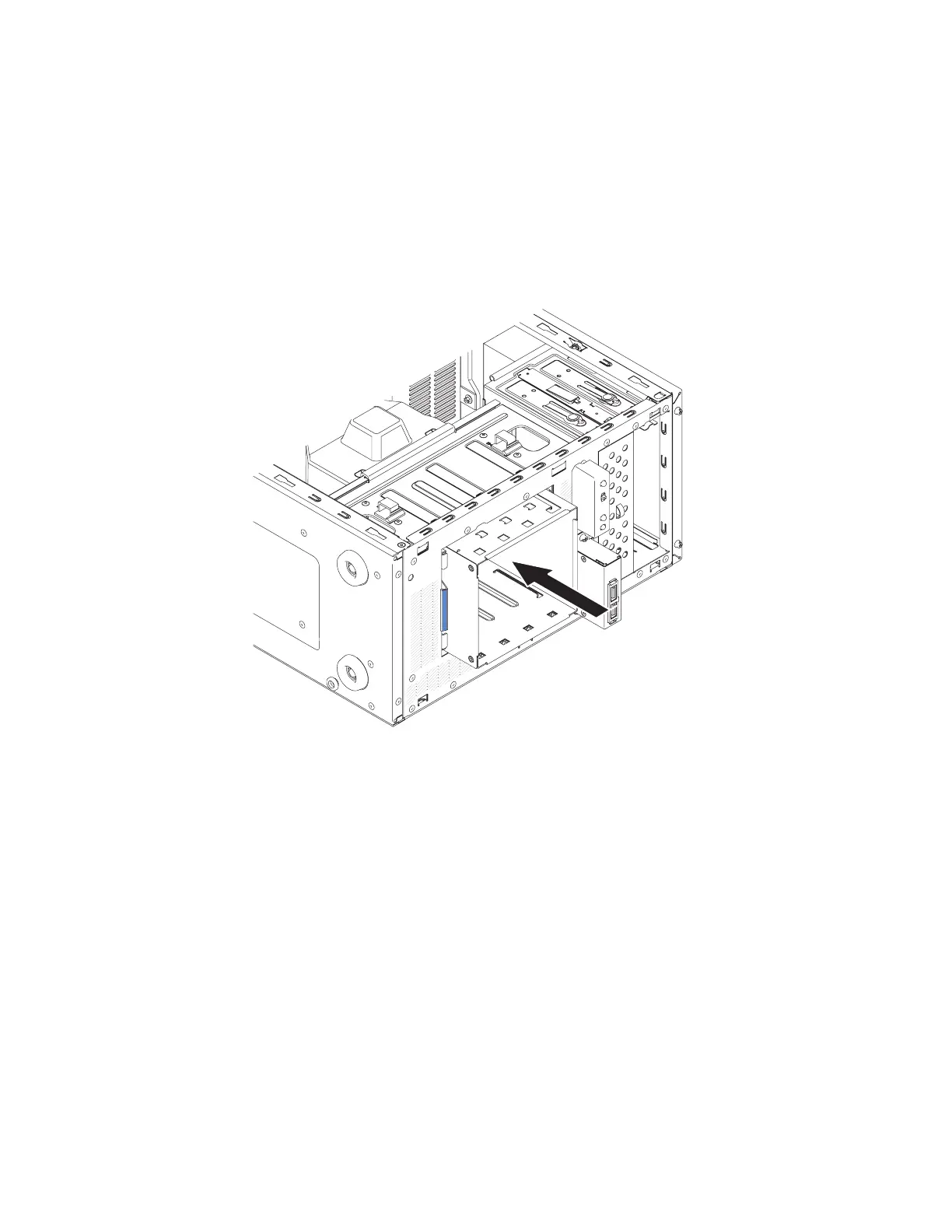

Figure 96. Hard disk drive cage installation for 4U server model with non-hot-swap power
supplies
196 System x3100 M5 Type 5457: Installation and Service Guide
