3. Install the screws to secure the hard disk drive cage into the chassis.
4. Connect the power, signal and configuration cables to the hard disk drive
backplane (for details regarding the cabling, see “Replacing the hot-swap hard
disk drive backplane” on page 243).
5. Press and hold the retaining tab on the side of the cage; then, rotate the drive
cage into the chassis until it locks into place.
Hard disk cage
Hinge pin
Pin hole

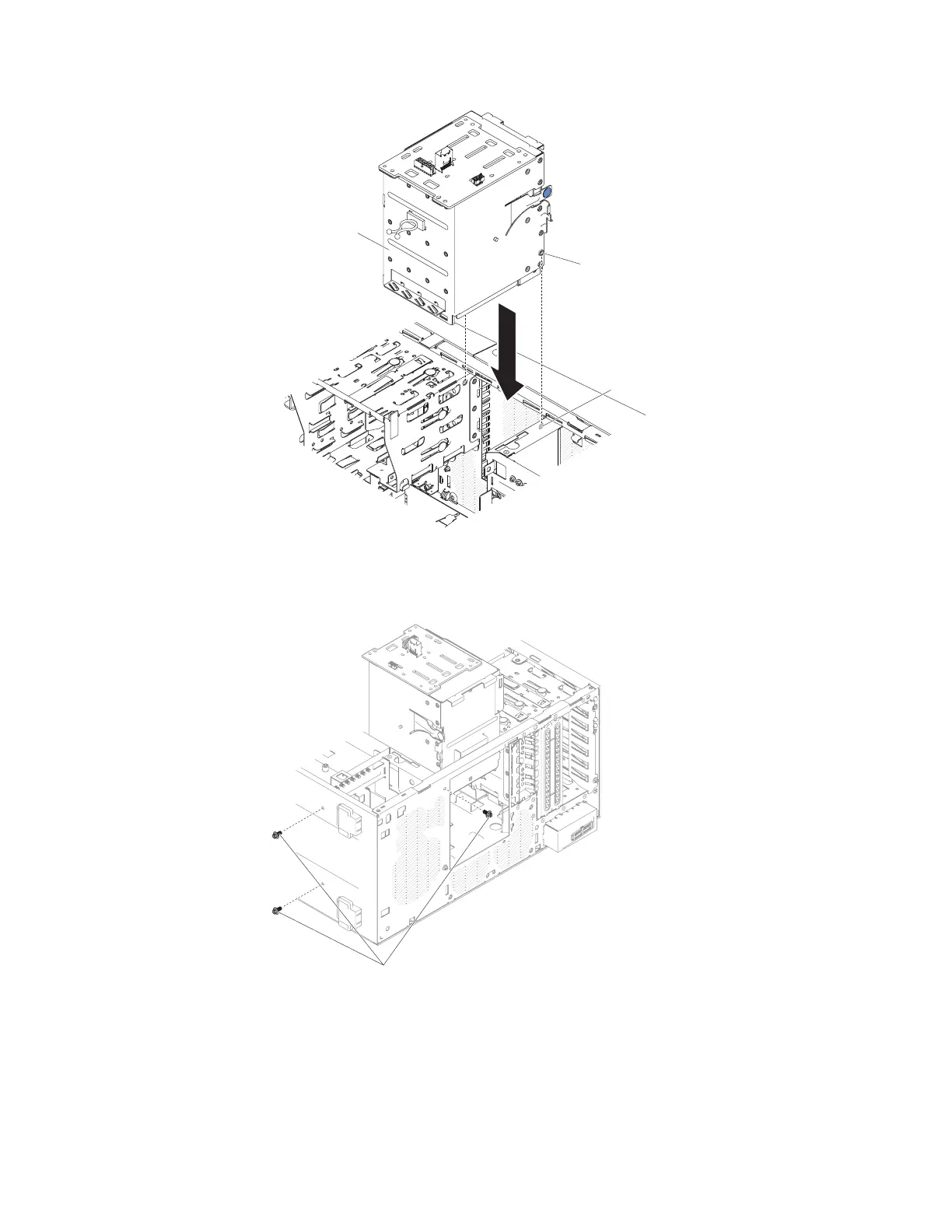

Figure 97. Hard disk drive cage installation for 5U server model with hot-swap power supplies
Screws
Figure 98. Hard disk drive cage screw installation for 5U server model with hot-swap power
supplies
Chapter 6. Removing and replacing components 197
