IBM x3100 M5 Type 5457 User Manual

Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component
while the server is running. (Orange can also indicate touch points on hot-swap
components.) See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before
you remove or install the component.
System-board internal connectors
This section contains information regarding the system board internal connectors.
The following illustration shows the internal connectors on the system board.
Side cover
with lock
Power supply
(redundant)
Rear retention bracket
for 5U chassis (adapter)
5U chassis
assembly
DVD-ROM
drive
Bezel (lower)
Hard disk drive
fan duct
System
board
Memory
Microprocessor
Heat sink
Operator information
panel assembly
Front USB connector
assembly
Hot-swap hard disk
drive (3.5-inch)
Bezel (upper)
Hot-swap hard disk
drive (2.5-inch)

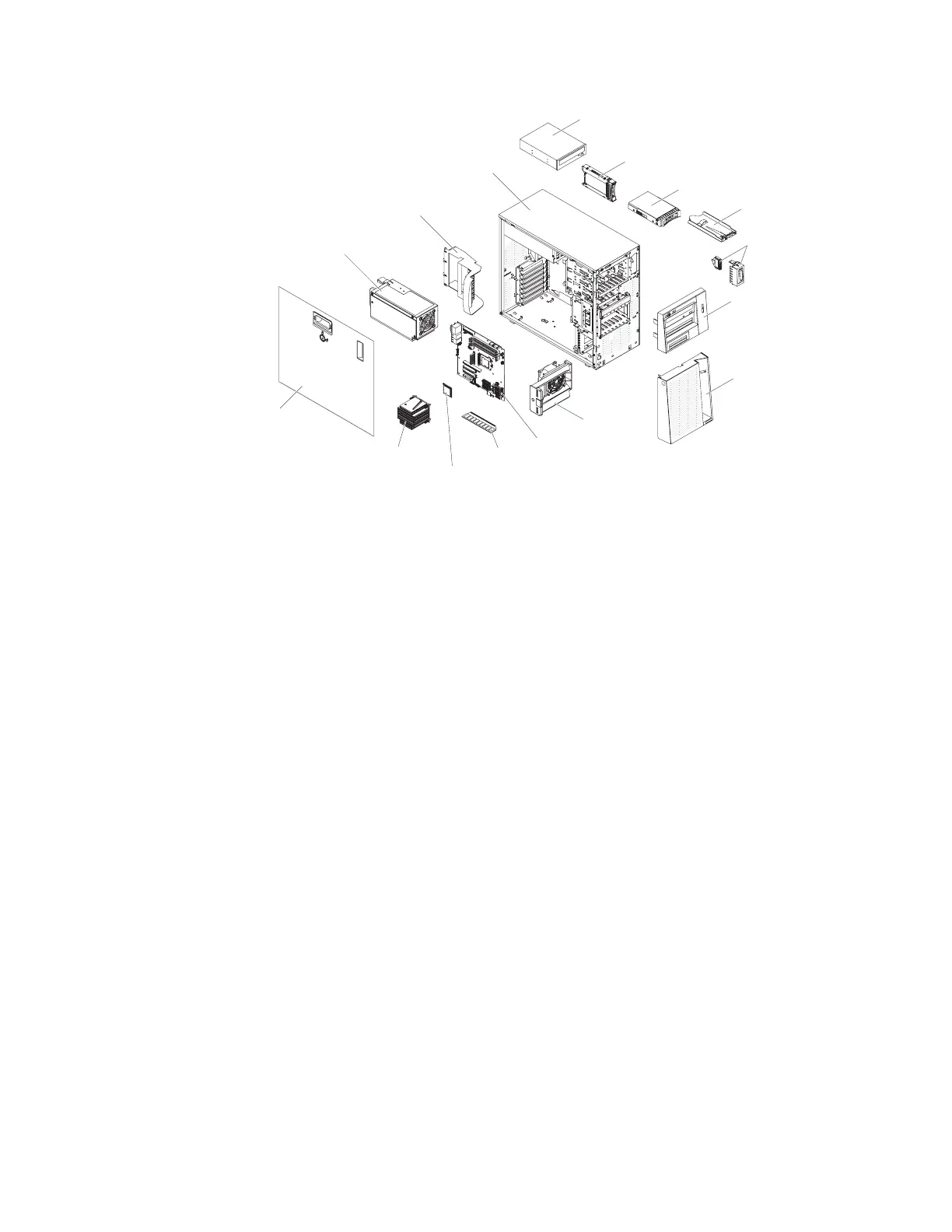

Figure 13. Server components for 5U server models with hot-swap power supplies
30 System x3100 M5 Type 5457: Installation and Service Guide
