IBM x3100 M5 Type 5457 User Manual

Server controls, LEDs, and power
This section describes the controls and light-emitting diodes (LEDs) and how to
turn the server on and off.
For the locations of other LEDs on the system board, see “System-board LEDs” on
page 34.
Front view
The following illustrations respectively show the controls, LEDs and connectors on
the front of the 4U and 5U server models.
DVD drive activity
LED(green)
DVD-eject
button
USB 2
USB 1
Power-on LED
Power-control
button
Hard disk drive
activity LED
System error
LED

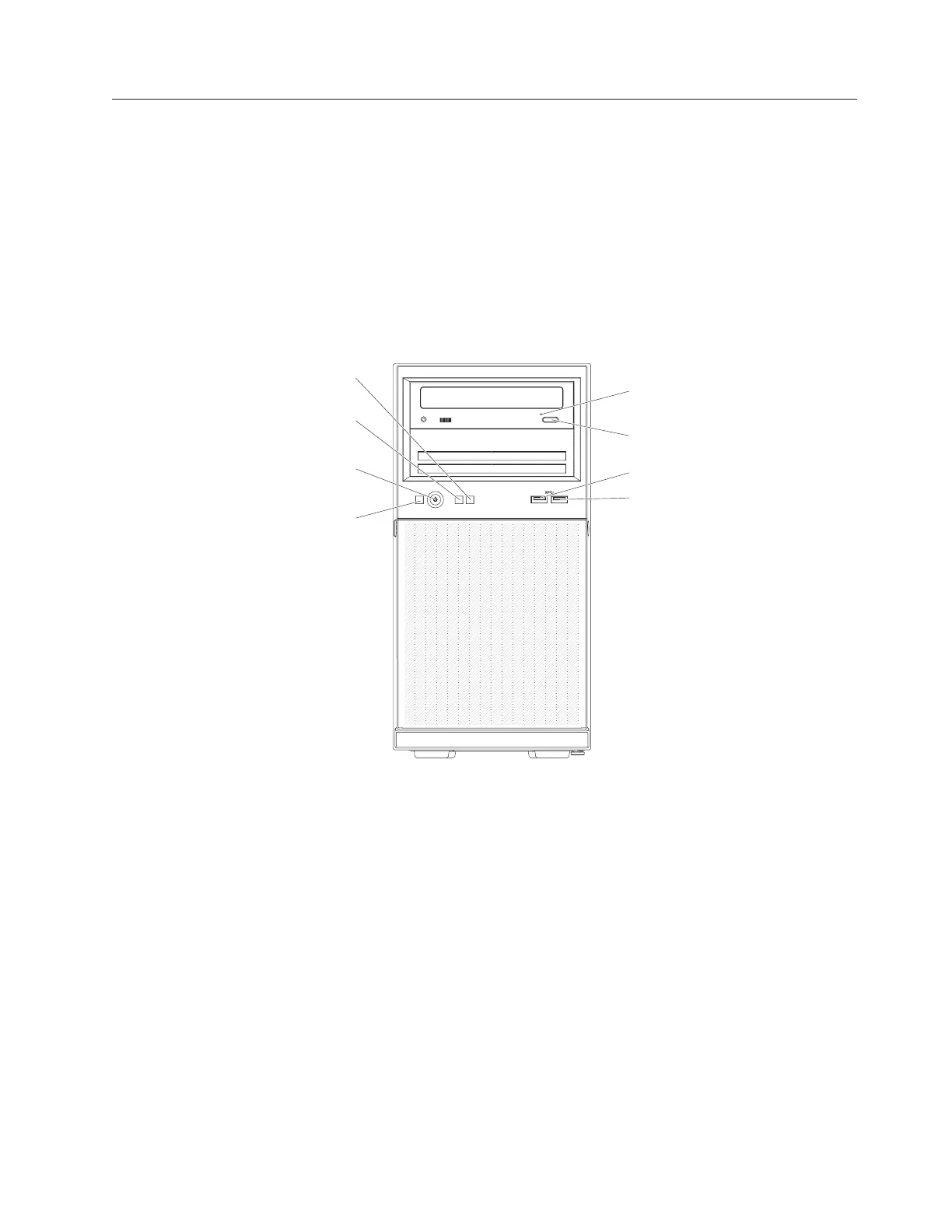

Figure 4. Front view of 4U server model with non-hot-swap power supplies (bezel installed)
Chapter 1. The IBM System x3100 M5 Type 5457 server 19

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
