IBM x3100 M5 Type 5457 User Manual

Important: The server keys cannot be duplicated by a locksmith. If you lose them,
order replacement keys from the key manufacturer. The key serial number and the
telephone number of the manufacturer are on a tag that is attached to the keys.
In addition, the system service label, which is on the cover of the server, provides a
QR code for mobile access to service information. You can scan the QR code using
a QR code reader and scanner with a mobile device and get quick access to the
IBM Service Information website. The IBM Service Information website provides
additional information for parts installation and replacement videos, and error
codes for server support.
In addition, the system service label, which is on the cover of the server, provides a
QR code for mobile access to service information. You can scan the QR code using
a QR code reader and scanner with a mobile device and get quick access to the
IBM Service Information website. The IBM Service Information website provides
additional information for parts installation and replacement videos, and error
codes for server support.
The following illustration shows the QR code (http://ibm.co/1ja7bP8):
You can download the IBM ServerGuide Setup and Installation CD to help you
configure the hardware, install device drivers, and install the operating system.
Model number
and serial number

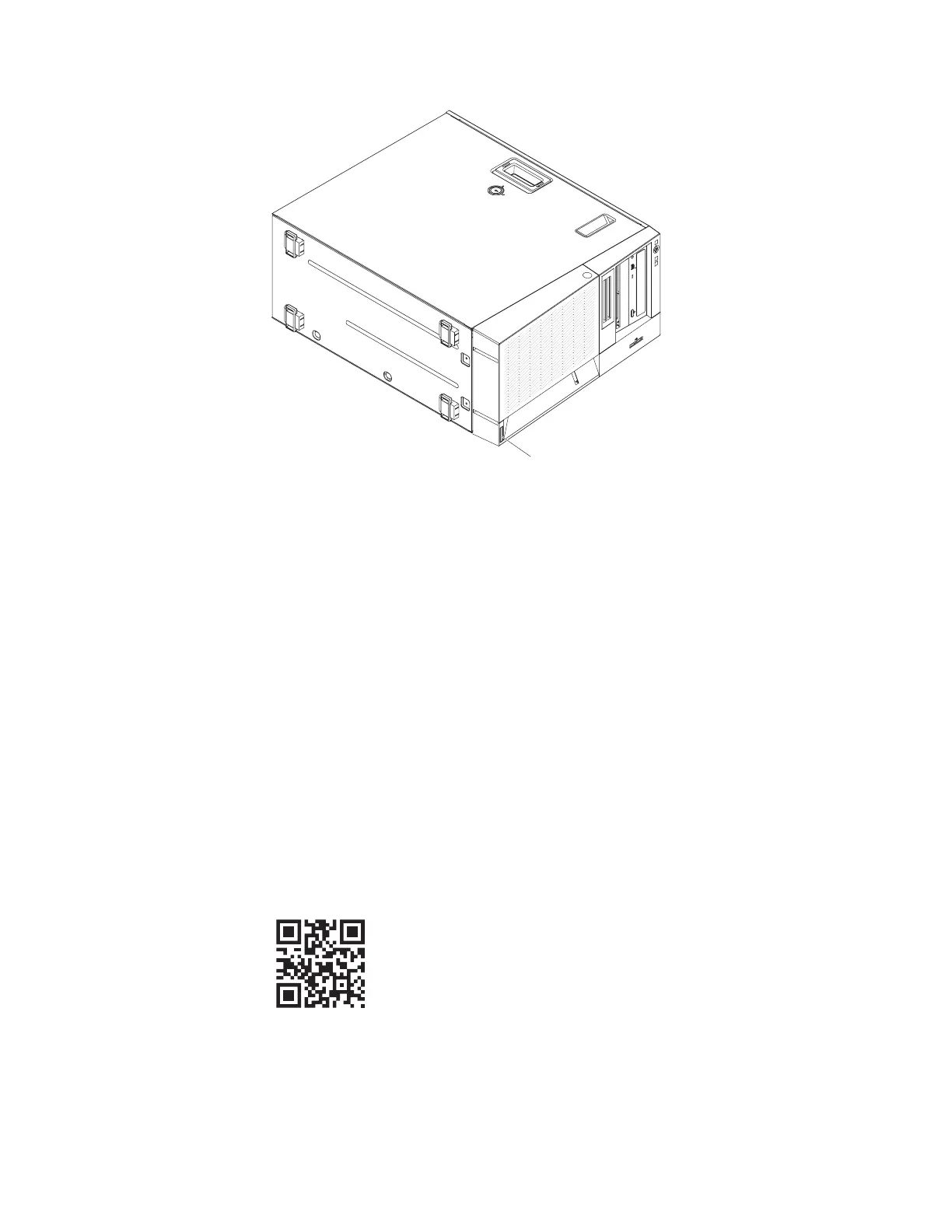

Figure 2. Location of model type/serial number of the 5U server model with hot-swap power
supplies
Figure 3. QR code
Chapter 1. The IBM System x3100 M5 Type 5457 server 3

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
