6. Remove the battery holder from the bracket by sliding it out of the slot.
7. Remove the latch retainer from the battery holder.
8. If you are instructed to return the battery, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.

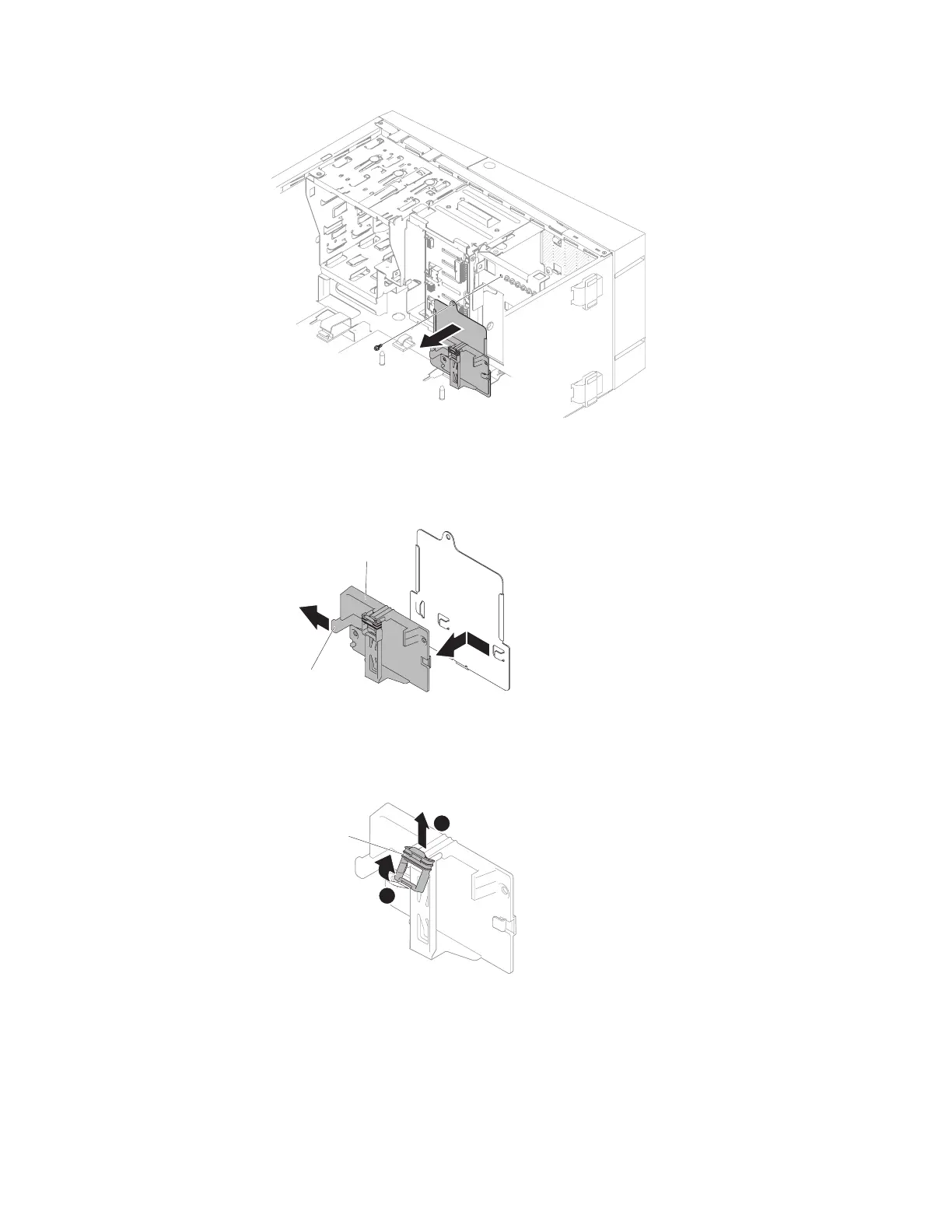

Figure 100. Battery holder and bracket removal from chassis for 5U server model with
hot-swap power supplies
Battery holder
Release latch
Figure 101. Battery holder removal from bracket for 5U server model with hot-swap power
supplies
1
2
Battery holder
latch retainer
Figure 102. Latch retainer removal from battery holder for 5U server models with hot-swap
power supplies
Chapter 6. Removing and replacing components 199

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
