Note: Remove the filler blocking the installed drive if any.
12. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
To install a DVD drive on the 5U server model with hot-swap power supplies,
complete the following steps. For 4U server models with non-hot-swap power
supplies, please see the above sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Follow the instructions that come with the drive to set jumpers or switches, if
there are any.
Note: You might find it easier to install the new drive from the front and then
attach the cables.
3. Touch the static-protective package that contains the new DVD drive to any
unpainted metal surface on the server; then, remove the DVD drive from the
package and place it on a static-protective surface.
4. Attach the drive retainer clip that you removed from the previous drive to the
side of the new drive.
5. Push the drive into the bay.
6. Connect the power and signal cables to the drive.
Note: Route the signal cable so that it does not block the airflow to the rear of
the drives or over the microprocessor and dual inline memory modules
(DIMMs).
7. Install the upper bezel (see “Replacing the upper bezel” on page 192).
8. Install the lower bezel (see “Replacing the lower bezel” on page 190).
9. Install and lock the side cover (see “Replacing the side cover” on page 182).
10. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.

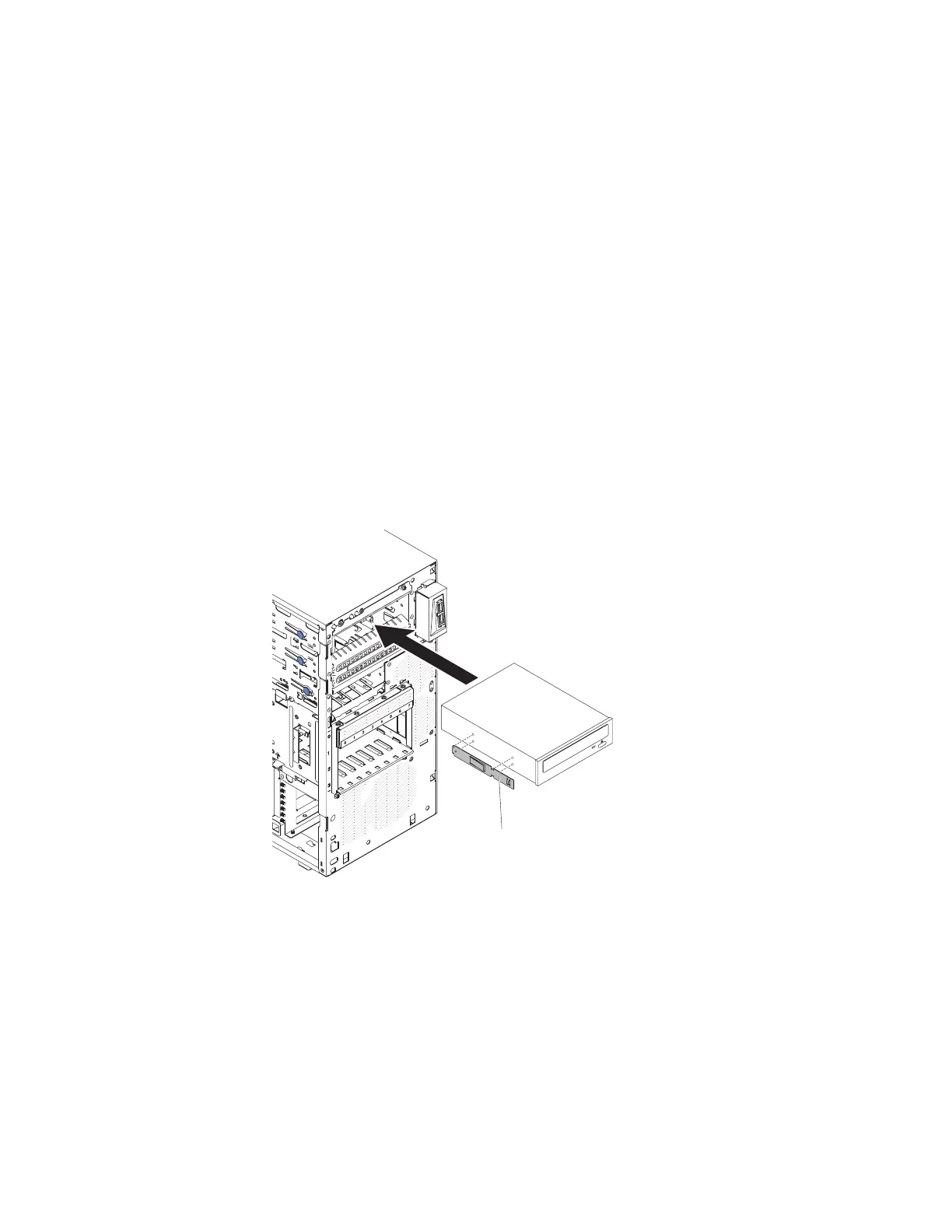

Drive retainer clip
Figure 112. DVD drive installation for 5U server model with hot-swap power supplies
Chapter 6. Removing and replacing components 209
