IBM x3100 M5 Type 5457

The following illustration shows the installation of a 3.5" hot swap hard disk for
5U server model with hot-swap power supplies.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2.5-inch hot-swap
hard disk drive
Drive handle
Activity LED
(green)
Error LED
(yellow)
Release latch

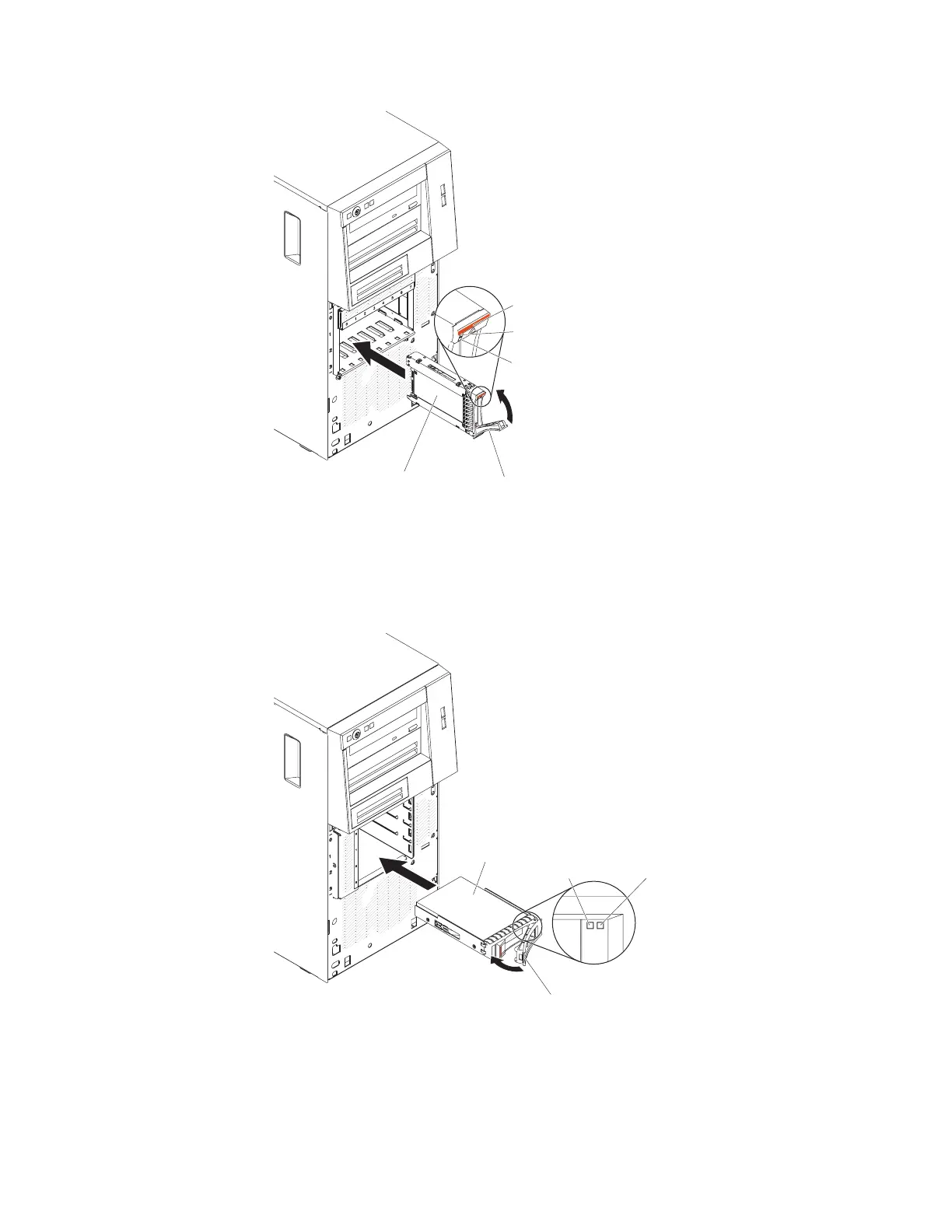

Figure 121. 2.5" hot swap hard disk drive installation for 5U server model with hot-swap
power supplies
3.5-inch hot-swap
hard disk drive
Drive handle
Activity LED
(green)
Error LED
(yellow)
Figure 122. 3.5" hot swap hard disk drive installation for 5U server model with hot-swap
power supplies
Chapter 6. Removing and replacing components 221
