3. Connect the hard disk drive fan duct cable to the system board (see
“System-board internal connectors” on page 30 for the location of the fan
assembly connector).
Attention: Remember to insert the hard disk drive fan duct cable into the
relevant retention clips.
The following illustration is for 5U server models with 2.5" hot swap hard disk
drives installed.
The following illustration is for 5U server models with 3.5" hot swap hard disk
drives installed.
Hard disk drive
fan duct
Guide pins
Latches
Latch holes

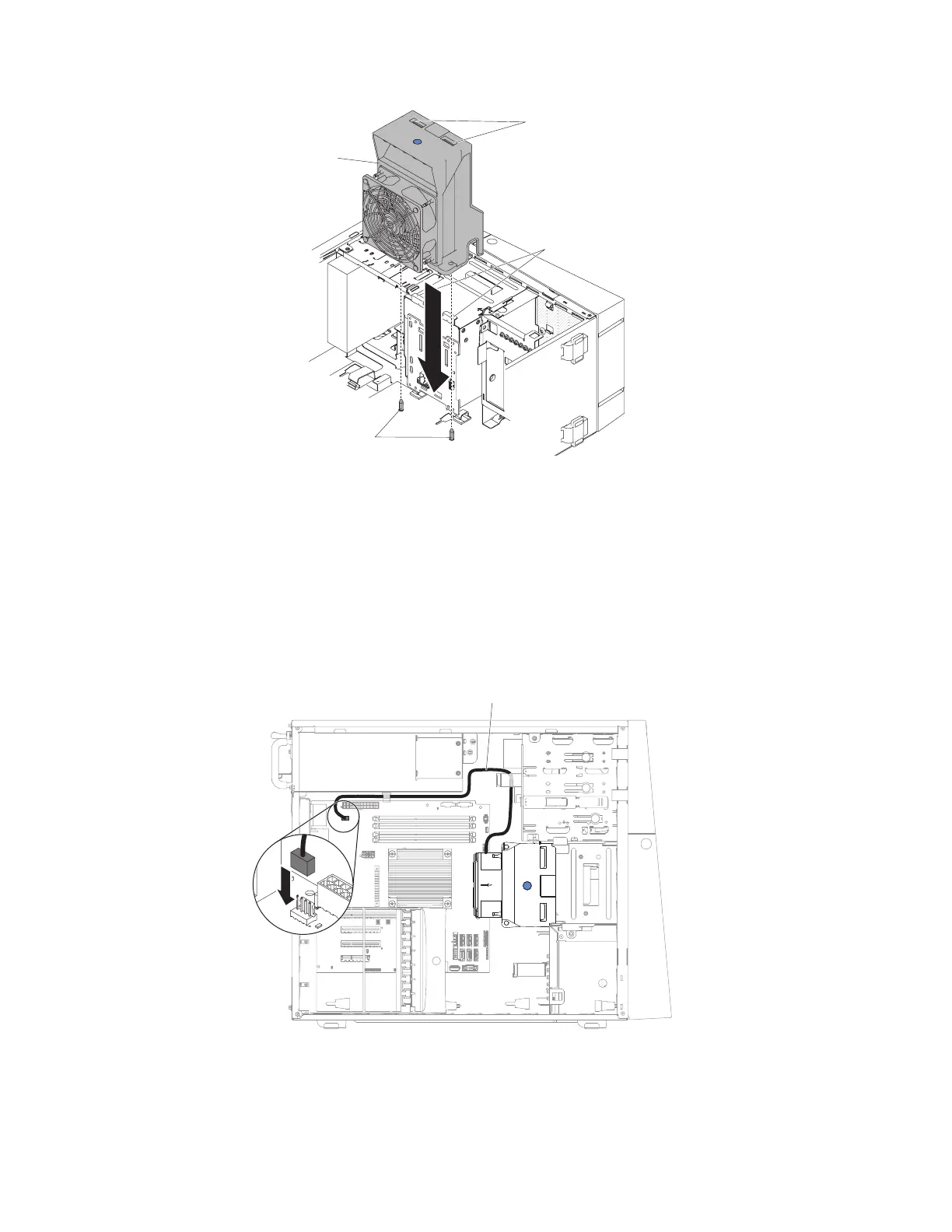

Figure 128. 3.5" hard disk drive fan duct installation for 5U server model with hot-swap power
supplies
Fan power cable
Figure 129. 2.5" hard disk drive fan duct cable installation for 5U server model with hot-swap
power supplies
226 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
