6. Connect the hard disk drive signal cables to the SATA connectors on the
system board or the connector on the adapter (if one is installed).
Note: In the LSI RAID utility, SATA 1 represents hard disk drive in drive bay
two and SATA 2 represents hard disk drive in drive bay one (see “Replacing a
simple-swap hard disk drive” on page 217).
The following illustrations shows the SATA connectors on the system board:
7. Push hard disk drive cage in until the release latches click into place.
S ATA 0
S ATA 1
S ATA 2
S ATA 3
S ATA 4
S ATA 5

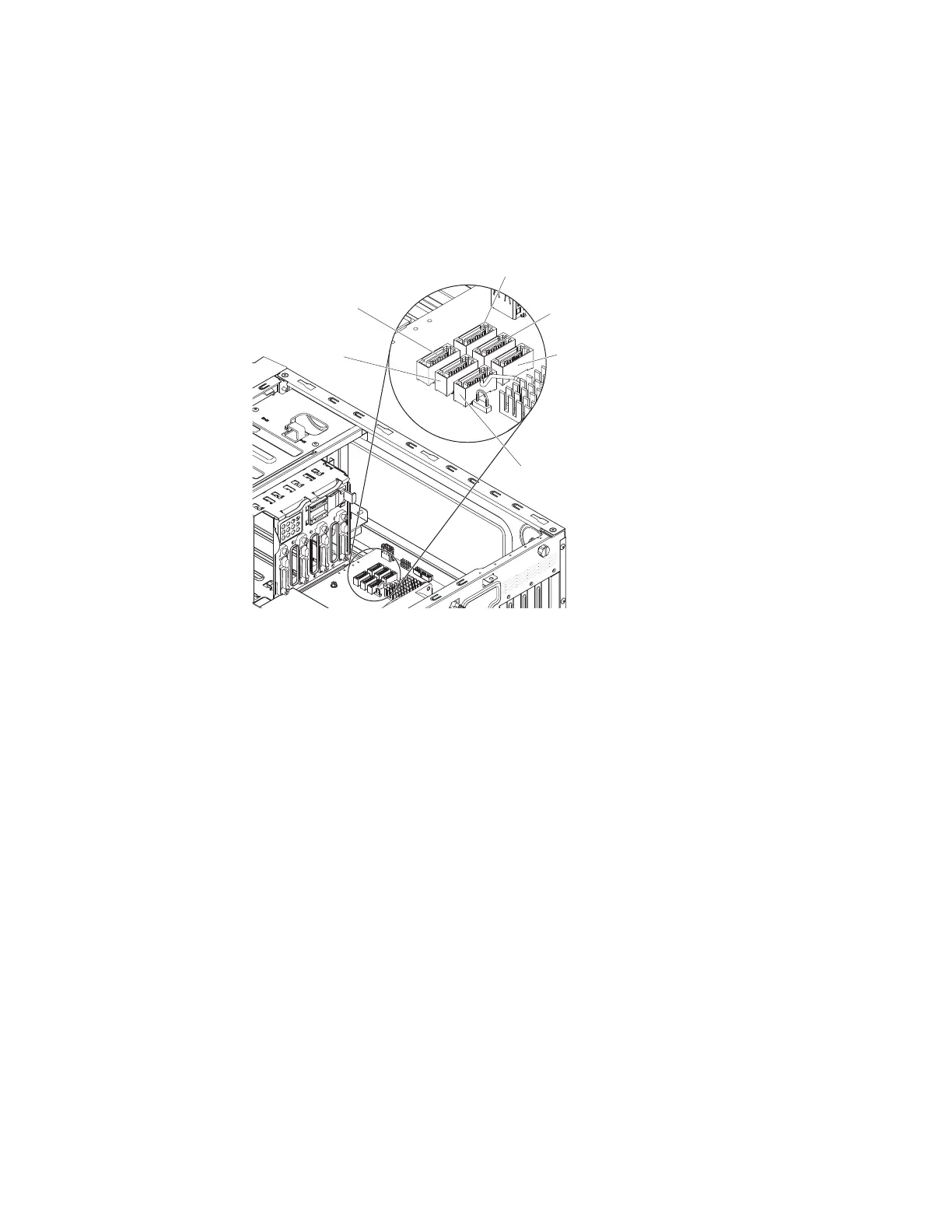

Figure 143. SATA connector location on system board for 4U server model with non-hot-swap
power supplies
236 System x3100 M5 Type 5457: Installation and Service Guide
