7. Connect the hard disk drive signal cable to the SAS connector on the adapter.
8. Secure the cables with the retention clips.
9. Push hard disk drive cage in until the release latches click into place.
ServeRAID adapter

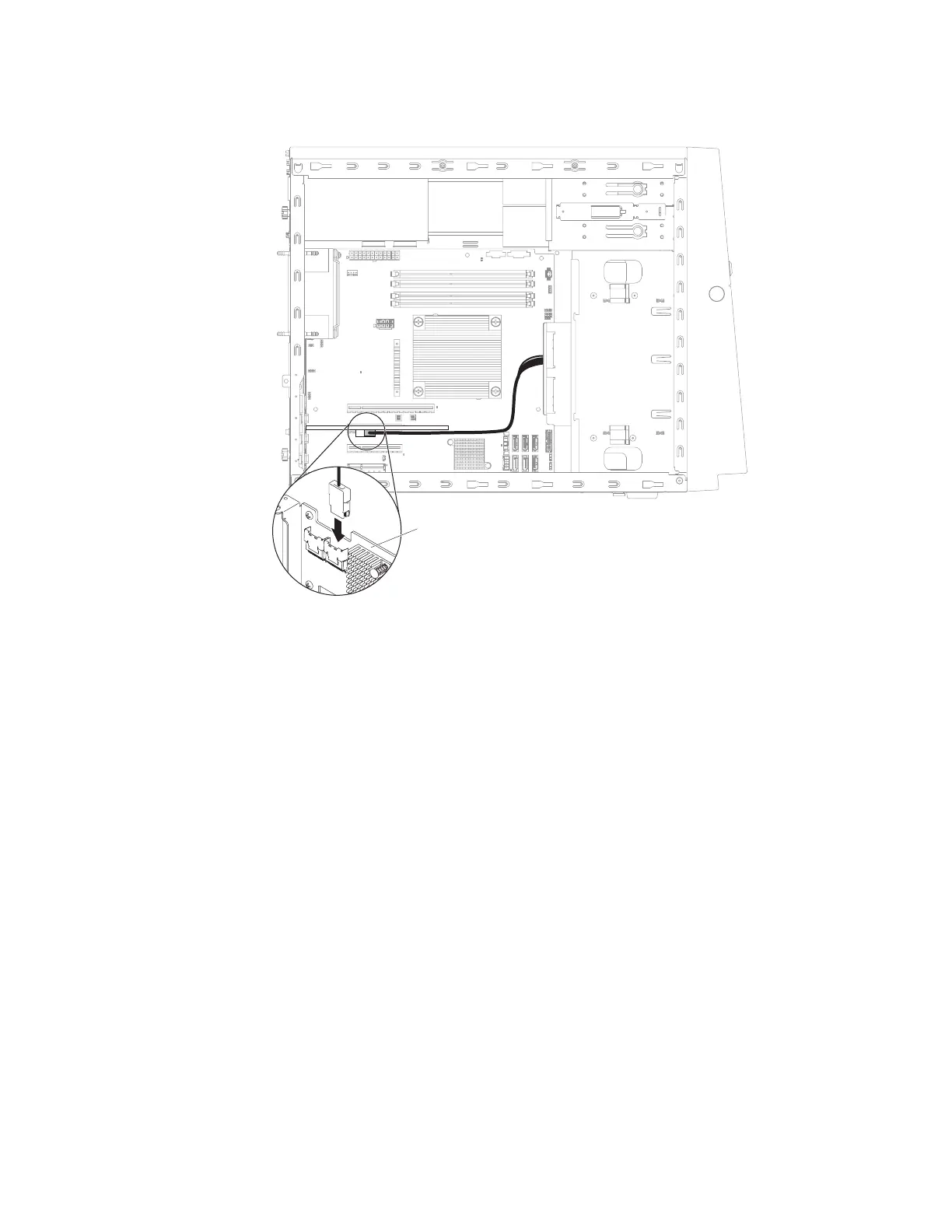

Figure 147. Hard disk drive signal cable connection to SAS connector on adapter for 4U
server model with non-hot-swap power supplies
Chapter 6. Removing and replacing components 239

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
